Switch Key Lock ON ON ON DP3T 45° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole

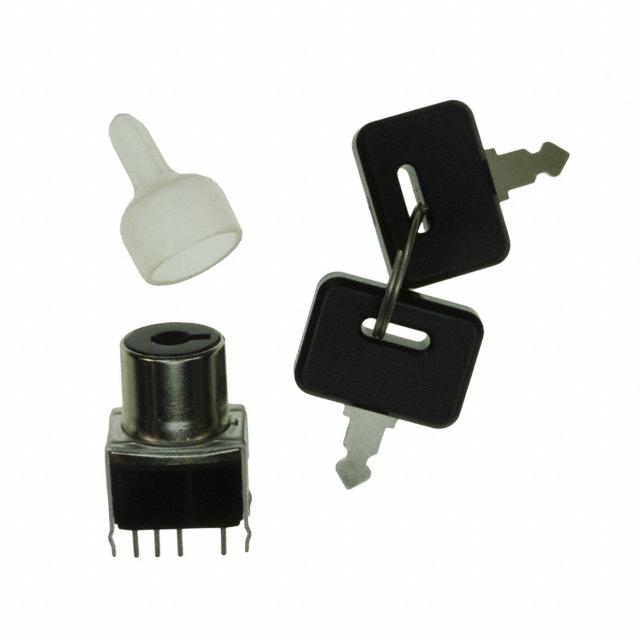

Single pole with 12 mm dia. bushing, silver contacts, UL Recognition, CSA Certification, short behind panel dimension and epoxy sealed solder lug terminals.Face and bezel have brushed chrome finish. 2 Keys of chromate-over-zinc alloy provided with each switch.
贸泽:
Keylock Switches DP3T ON-ON-ON 0.4VA PC STRAIGHT W/BRCKT
艾睿:
Switch Key Lock ON ON ON DP3T 45
Allied Electronics:
SWITCH KEYLOCK DP3T STR PC 28V
Chip1Stop:
Switch Key Lock ON ON ON DP3T 45° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
Powell:
MINIATURE KEYLOCK/PC
触点电镀 Gold
接触器类型 Key
额定电压AC 28 V
额定电流 0.1 mA
方向 Vertical
触点类型 DP3T
针脚数 3
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 80 mΩ
安装方式 Through Hole
长度 15.74 mm
宽度 14.5 mm
高度 21 mm
外壳材质 Nylon
产品生命周期 10000 Cycles
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
