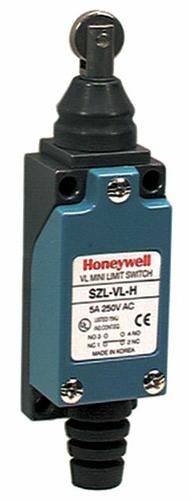

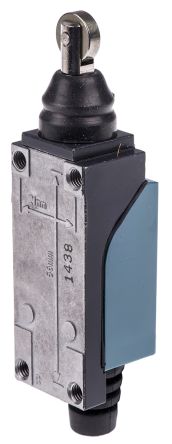

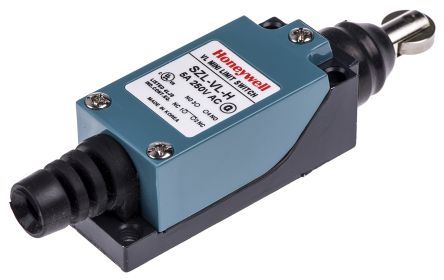

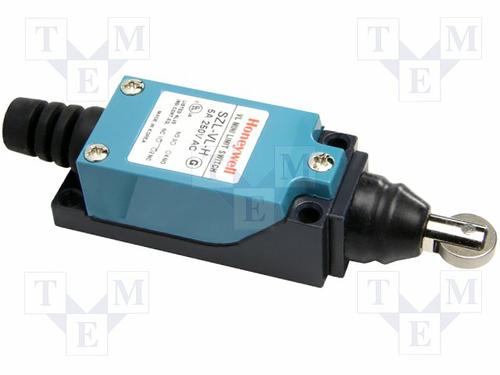

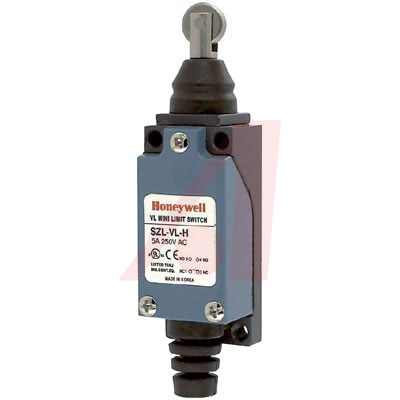

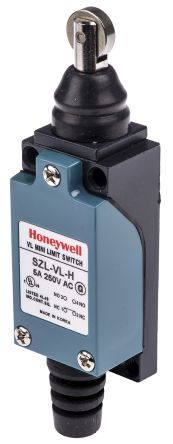

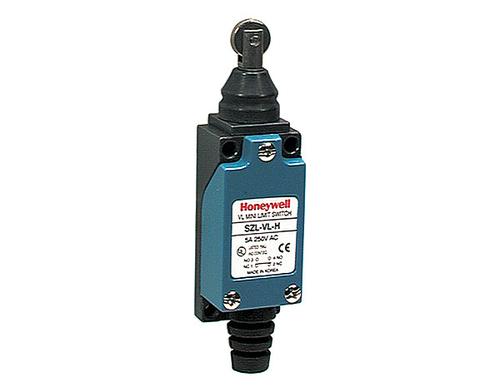

SZL-VL-H

SZL-VL 超微型经济超微型限位开关专为安装空间受限的应用设计。 特殊的柔性电缆固定头可实现快速简单的布线。 可拆卸前面板让基座保持固定，便于布线。柔性电缆固定头 IP64 外壳等级 锌压铸基座和塑料前盖 5A 电流容量 双断开 温度范围：-20 至 +60°C 中心之间 56 x 21mm，基板固定孔 随附安装螺钉 CE 标志，符合相关欧盟指令 ### 认可UL, C-UL### 标准UL508

SZL-VL 超微型

经济超微型限位专为安装空间受限的应用设计。 特殊的柔性电缆固定头可实现快速简单的布线。 可拆卸前面板让基座保持固定，便于布线。

柔性电缆固定头

IP64 外壳等级

锌压铸基座和塑料前盖

5A 电流容量

双断开

温度范围：-20 至 +60°C

中心之间 56 x 21mm，基板固定孔

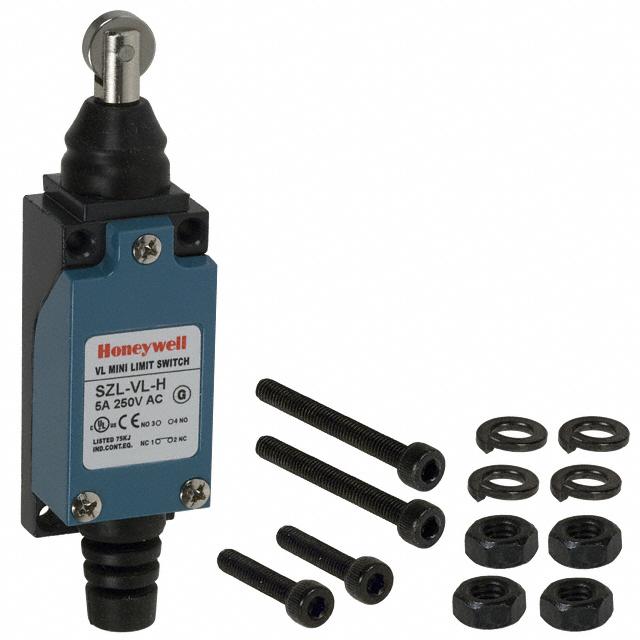

随附安装螺钉

CE 标志，符合相关欧盟指令

### 认可

UL, C-UL

### 标准

UL508

得捷:
SWITCH SNAP ACTION SPDT 5A 250V

欧时:
Honeywell SZL-VL 系列 IP64 压铸锌外壳 限位开关 SZL-VL-H, 柱塞, SPDT, 常开/常闭, 250V

艾睿:
This general purpose SZL-VL-H limit switch from Honeywell can activate different components within your circuitry based on electro-mechanical connections within the switch. It has a SPDT configuration. SZL-VL-H is housed in plastic. This device has a maximum current rating of 5. This limit switch has a minimum operating temperature of -20 °C and a maximum of 60 °C. The SZL-VL-H limit switch has a cable termination style. This product is 28 mm long, 112 mm tall and 25 mm deep.

Allied Electronics:
IP64 Limit Switch, Plunger, Die Cast Zinc, NO/NC, 250V

Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 5A 8.83N Linear Screw Mount

TME:
Limit switch; top roller arm; NO + NC; 5A; max250VAC; max125VDC

Verical:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 5A 8.83N Linear Screw Mount

Newark:
# HONEYWELL  SZL-VL-H  Limit Switch, Roller Plunger, SPDT-1NO, SPDT-NC, 5 A, 250 V, 8.83 N, VL Series

MASTER:
MICRO SWITCH™ Global Limit Switches: SZL-VL Series General Purpose Limit Switch, Top Roller Plunger Actuator, 1NC 1NO Single Pole Double Throw SPDT, Double Break, Flexible Cable Gland

Online Components:
MICRO SWITCH™ Medium-Duty Limit Switches: BZ Series Enclosed Basic Switch, Side Mount, Die Cast Zinc, 1NC 1NO Single Pole Double ...

Electro Sonic:
MICRO SWITCH™ Global Limit Switches: SZL-VL Series General Purpose Limit Switch, Top Roller Plunger Actuator, 1NC 1NO Single Pole Double ...

Win Source:
SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT DB/DM Chassis Mount
