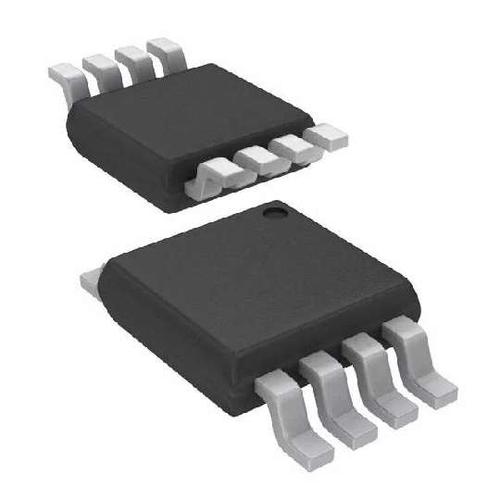

SN65LVDT100DGKR

微分翻译/中继器 DIFFERENTIAL TRANSLATOR/REPEATER

DESCRIPON

The SN65LVDS100, SN65LVDT100, SN65LVDS101, and SN65LVDT101 are a high-speed differential receiver and driver connected as a repeater. The receiver accepts low-voltage differential signaling

LVDS, positive-emitter-coupled logic PECL, or current-mode logic CML input signals at rates up to 2

Gbps and repeats it as either an LVDS or PECL output signal. The signal path through the device is

differential for low radiated emissions and minimal added jitter.

FEATURES

• Designed for Signaling Rates1 ≥ 2 Gbps

• Total Jitter < 65 ps

• Low-Power Alternative for the MC100EP16

• Low 100 ps Max Part-To-Part Skew

• 25 mV of Receiver Input Threshold Hysteresis Over 0-V to 4-V Common-Mode Range

• Inputs Electrically Compatible With LVPECL, CML, and LVDS Signal Levels

• 3.3-V Supply Operation

• LVDT Integrates 110-Ω Terminating Resistor

• Offered in SOIC and MSOP

APPLICATIONS

• 622 MHz Central Office Clock Distribution

• High-Speed Network Routing

• Wireless Basestations

• Low Jitter Clock Repeater

• Serdes LVPECL Output to FPGA LVDS Input Translator
