SN75LVCP412CDRTJR

双通道SATA 3 Gbps的转接驱动器，带有线检测 Two Channel SATA 3 Gbps Redriver With Cable Detect

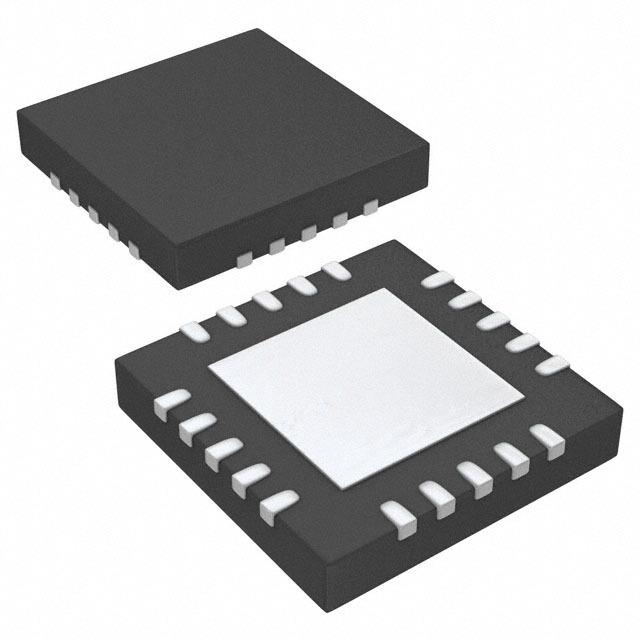

缓冲器，转接驱动器 2 通道 3Gbps 20-QFN（4x4）

立创商城:
SN75LVCP412CDRTJR

德州仪器TI:
2-channel SATA 3-Gbps redriver with cable detect

得捷:
IC REDRIVER SATA 2CH 3GBPS 20QFN

艾睿:
CML Buffer 3.3V 20-Pin WQFN EP T/R

安富利:
The SN75LVCP412 is a dual channel, single lane SATA redriver and signal conditioner supporting data rates up to 3.0 Gbps. The devicecomplies with SATA specification revision 2.6 and eSATA requirements.The SN75LVCP412 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature making the device suitable for AC coupling. The inputs incorporate an OOB detector, which automatically squelches the output while maintaining a stable output common-mode voltage compliant to SATA link. The device is also designed to handle SSC transmission per the SATA specification.The SN75LVCP412 handles interconnect losses at both its input and output. The built-in transmitter pre-emphasis feature is capable of applying 0 dB or 2.5 dB of relative amplification at higher frequencies to counter the expected interconnect loss. On the receive side the device applies a fixed equalization of 7 dB to boost input frequencies near 1.5 GHz. Collectively, the input equalization and output pre-emphasis features of the device work to fully restore SATA signal integrity over extended cable and backplane pathways.The device is hot-plug capable1 preventing device damage under device **hot**-insertion such as async signal plug/removal, unpowered plug/removal, powered plug/removal, or surprise plug/removal.1** Requires use of AC coupling capacitors at differential inputs and outputs.**

Chip1Stop:
TWO CHANNEL SATA 3 GBPS REDRIVER WITH CABLE DETECT

Verical:
Two Channel SATA 3 Gbps Redriver With Cable Detect
