SN75LVDT388ADBT

高速差动线路接收器 HIGH-SPEED DIFFERENTIAL LINE RECEIVERS

DESCRIPON

This family of four-, eight-, or sixteen-, differential line receivers with optional integrated termination im

plements the electrical characteristics of low-voltage differential signaling LVDS. This signaling technique

lowers the output voltage levels of 5-V differential standard levels such as EIA/TIA-422B to reduce the

power, increase the switching speeds, and allow operation with a 3-V supply rail.

FEATURES

• Four- "390, Eight- "388A, or Sixteen- "386 Line Receivers Meet or Exceed the Requirements of ANSI TIA/EIA-644 Standard

• Integrated 110-Ω Line Termination Resistors on LVDT Products

• Designed for Signaling Rates1 Up To 630 Mbps

• SN65 Version"s Bus-Terminal ESD Exceeds 15 kV

• Operates From a Single 3.3-V Supply

• Typical Propagation Delay Time of 2.6 ns

• Output Skew 100 ps Typ Part-To-Part Skew Is Less Than 1 ns

• LVTTL Levels Are 5-V Tolerant

• Open-Circuit Fail Safe

• Flow-Through Pinout

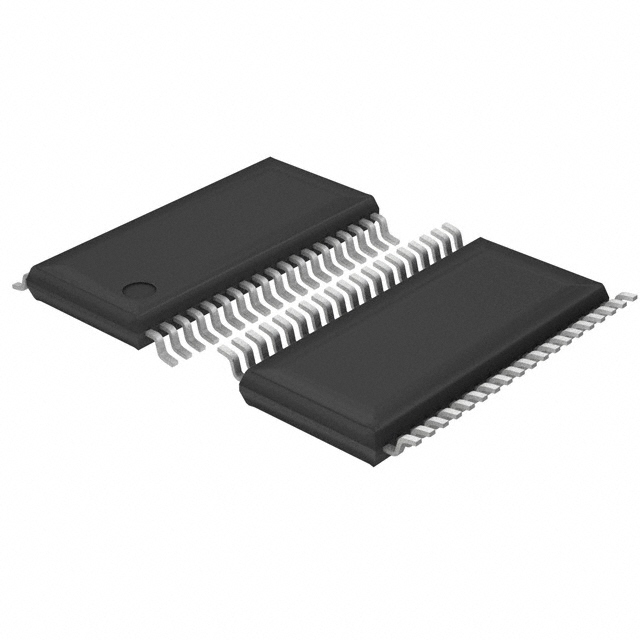

• Packaged in Thin Shrink Small-Outline Package With 20-mil Terminal Pitch
