MEMORY STICK互连延长芯片组具有LVDS MEMORY STICK⑩ INTERCONNECT EXTENDER CHIPSET WITH LVDS
DESCRIPON
The SN65LVDT14 combines one LVDS line driver with four terminated LVDS line receivers in one package. It is designed to be used at the Memory Stick end of an LVDS based Memory Stick interface extension.
The SN65LVDT41 combines four LVDS line drivers with a single terminated LVDS line receiver in one package. It is designed to be used at the host end of an LVDS based Memory Stick interface extension.
FEATURES
• Integrated 110-Ω Nominal Receiver Line Termination Resistor
• Operates From a Single 3.3-V Supply
• Greater Than 125 Mbps Data Rate
• Flow-Through Pin-Out
• LVTTL Compatible Logic I/Os
• ESD Protection On Bus Pins Exceeds 16 kV
• Meets or Exceeds the Requirements of ANSI/TIA/EIA-644A Standard for LVDS
• 20-Pin PW Thin Shrink Small-Outline Package With 26-Mil Terminal Pitch
APPLICATIONS
• Memory Stick Interface Extensions With Long Interconnects Between Host and Memory Stick™
• Serial Peripheral Interface™ SPI Interface Extension to Allow Long Interconnects Between Master and Slave
• MultiMediaCard™ Interface in SPI Mode
• General-Purpose Asymmetric Bidirectional Communication
电源电压DC 3.00V min
供电电流 35 mA
耗散功率 774 W
数据速率 125 Mbps
输入电流Min 20 μA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 774 mW
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 20

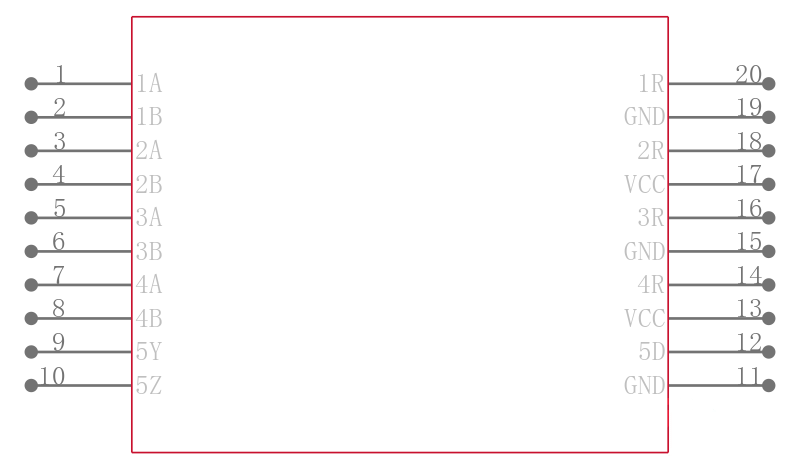

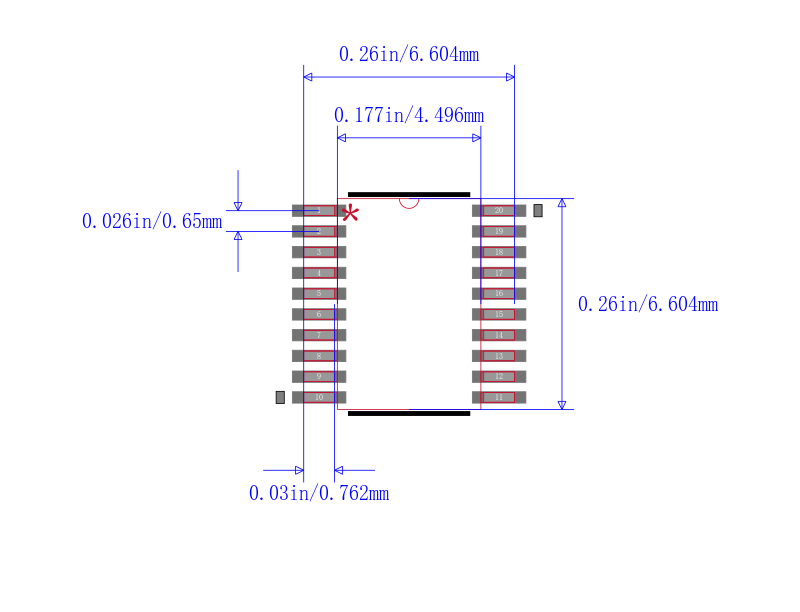

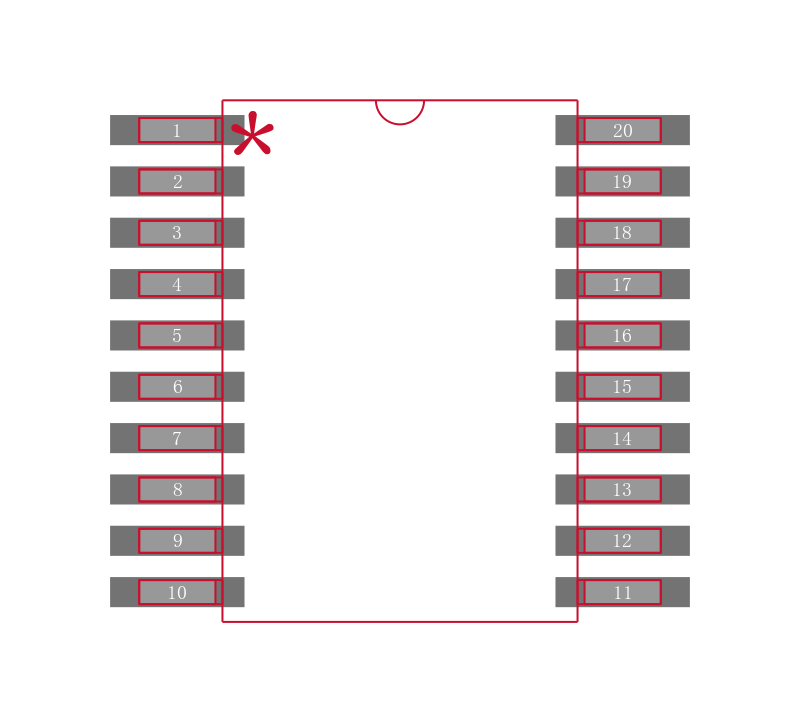

封装 TSSOP-20
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN65LVDT14PWR TI 德州仪器 | 当前型号 | 当前型号 |
SN65LVDT14PW 德州仪器 | 完全替代 | SN65LVDT14PWR和SN65LVDT14PW的区别 |
SN65LVDT14PWG4 德州仪器 | 完全替代 | SN65LVDT14PWR和SN65LVDT14PWG4的区别 |
