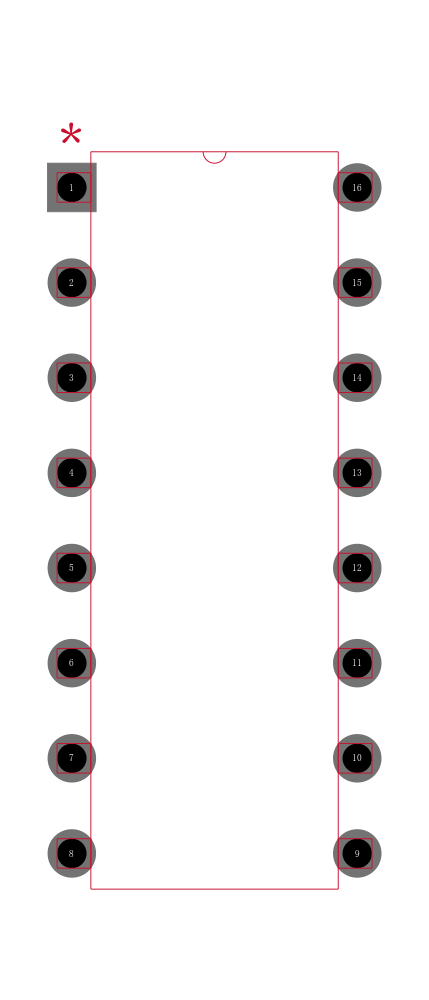

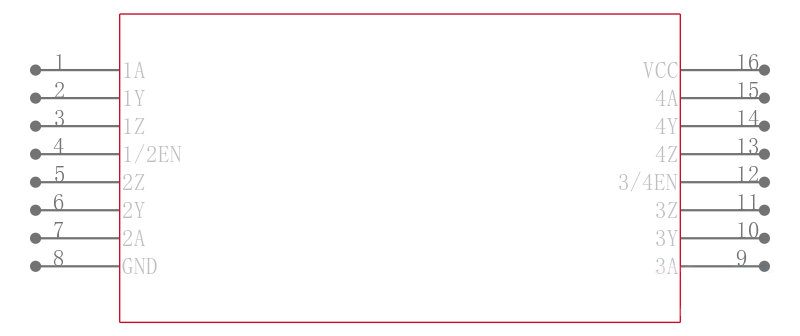

SN65LBC174N

翻两番低功耗差动线路驱动器 QUADRUPLE LOW-POWER DIFFERENTIAL LINE DRIVERS

description

The SN65LBC174 and SN75LBC174 are monolithic, quadruple, differential line drivers with 3-state outputs. Both devices are designed to meet the requirements of the Electronics Industry Association Standard EIA-485. These devices are optimized for balanced multipoint bus transmission at data rates up to and exceeding 10 million bits per second. Each driver features wide positive and negative common-mode output voltage ranges, current limiting, and thermal shutdown protection, making it suitable for party-line applications in noisy environments. Both devices are designed using LinBiCMOS, facilitating ultralow power consumption and inherent robustness.

• Meets or Exceeds the Standard EIA-485

• Designed for High-Speed Multipoint Transmission on Long Bus Lines in Noisy Environments

• Supports Data Rates up to and Exceeding Ten Million Transfers Per Second

• Common-Mode Output Voltage Range of –7 V to 12 V

• Positive- and Negative-Current Limiting

• Low Power Consumption . . . 1.5 mA Max Output Disabled

• Functionally Interchangeable With SN75174
