SN65LVDS96DGG

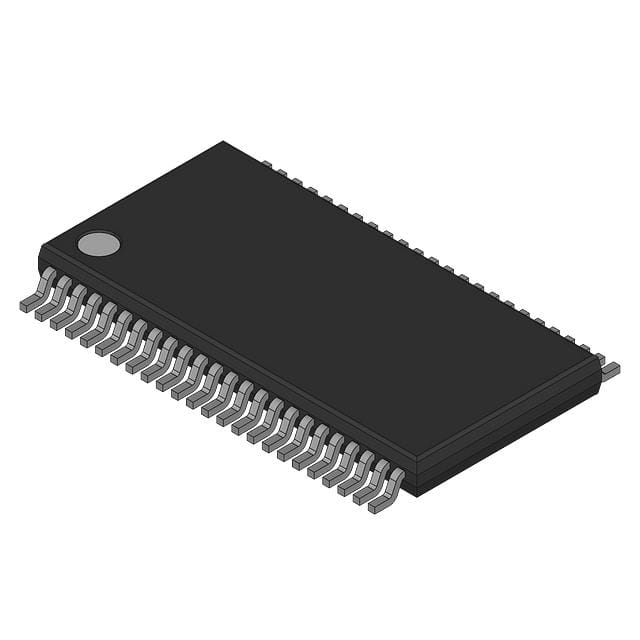

TEXAS INSTRUMENTS  SN65LVDS96DGG  芯片, 串化/解串器, 1.428GBPS, TSSOP-48

DESCRIPON

The SN65LVDS96 LVDS serdes serializer/deserializer receiver contains three serial-in 7-bit parallel-out shift registers, a 7× clock synthesizer, and four low-voltage differential signaling LVDS line receivers in a single integrated circuit. These functions allow receipt of synchronous data from a compatible transmitter, such asthe SN65LVDS95, over four balanced-pair conductors and expansion to 21 bits of single-ended LVTTL synchronous data at a lower transfer rate.

FEATURES

• 3:21 Data Channel Compression at up to 1.428 Gigabits/s Throughput

• Suited for Point-to-Point Subsystem Communication With Very Low EMI

• 3 Data Channels and Clock Low-Voltage Differential Channels in and 21 Data and Clock Low-Voltage TTL Channels Out

• Operates From a Single 3.3-V Supply and 250 mW Typ

• 5-V Tolerant SHTDN Input

• Rising Clock Edge Triggered Outputs

• Bus Pins Tolerate 4-kV HBM ESD

• Packaged in Thin Shrink Small-Outline Package With 20 Mil Terminal Pitch

• Consumes <1 mW When Disabled

• Wide Phase-Lock Input Frequency Range 20 MHz to 68 MHz

• No External Components Required for PLL

• Inputs Meet or Exceed the Requirements of ANSI EIA/TIA-644 Standard

• Industrial Temperature Qualified TA = –40°C to 85°C

• Replacement for the DS90CR216
