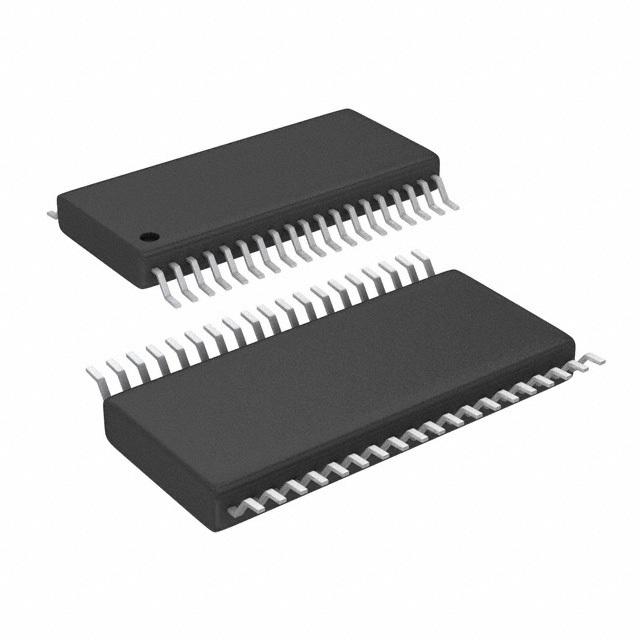

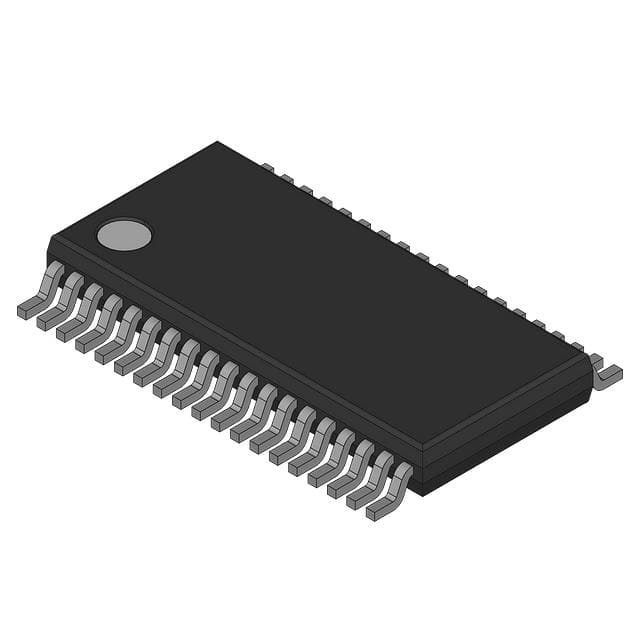

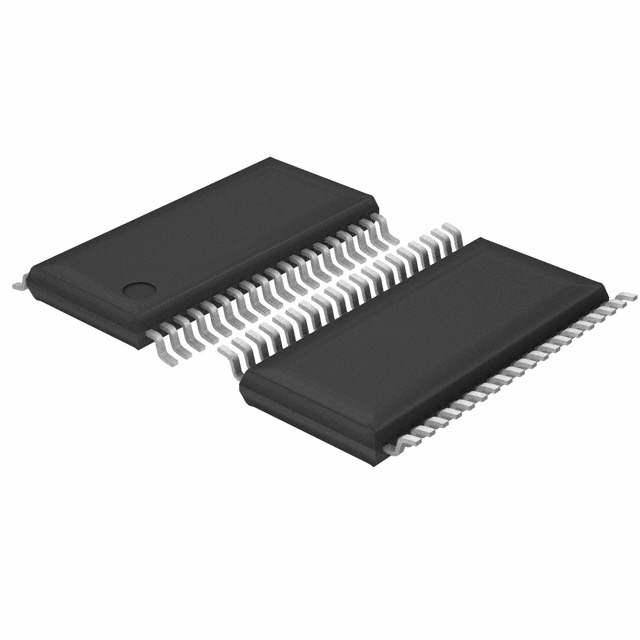

SN65LVDT388DBTR

高速差动线路接收器 HIGH-SPEED DIFFERENTIAL LINE RECEIVERS

description

The ‘LVDS388 and ‘LVDT388 Tdesignates integrated termination are eight differential line receivers that implement the electrical characteristics of low-voltage differential signaling LVDS. This signaling technique lowers the output voltage levels of 5-V differential standard levels such as EIA/A-422B to reduce the power, increase the switching speeds, and allow operation with a 3-V supply rail.

Eight Line Receivers Meet or Exceed the Requirements of ANSI TIA/EIA-644 Standard

Integrated 110-ΩLine Termination Resistors on LVDT Products

Designed for Signaling Rates†Up To 630 Mbps

SN65 Version’s Bus-Terminal ESD Exceeds 15 kV

Operates From a Single 3.3-V Supply

Propagation Delay Time of 2.6 ns Typ

Output Skew 100 ps Typ Part-To-Part Skew Is Less Than 1 ns

LVTTL Levels Are 5-V Tolerant

Open-Circuit Fail Safe

Flow-Through Pin Out

Packaged in Thin Shrink Small-Outline Package With 20-mil Terminal Pitch
