SZL-WLC-C-N

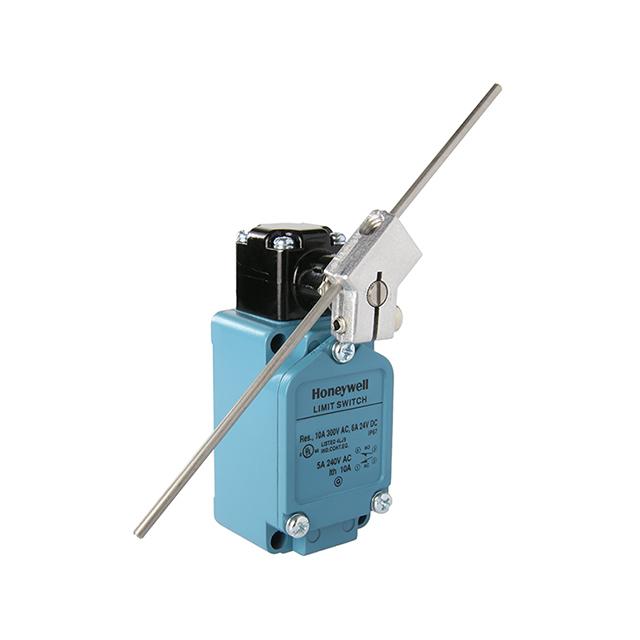

SZL-WLC-C-N图片1

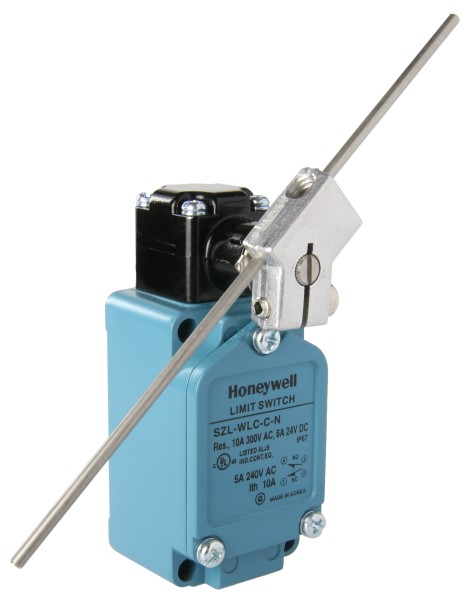

SZL-WLC-C-N图片2
SZL-WLC-C-N图片3
SZL-WLC-C-N图片4
SZL-WLC-C-N图片5
SZL-WLC-C-N概述

MICRO SWITCH™ Global Limit Switches: SZL-WL Series General Purpose Limit Switch, Additional Over Travel C Series 90° Total Travel, Side Rotary, Adjustable Rod Actuator, 1NC 1NO Single Pole Double Throw SPDT, Double Break, 0.5in - 14NPT Conduit

MICRO SWITCH™ Medium-Duty Limit Switches: BZ Series Enclosed Basic Switch, Side Mount, Die-Cast Zinc, 1NC 1NO Single Pole Double Throw SPDT, Snap Action, Adjustable Roller Lever, No Seal Boot, 0.5 in - 14NPT Conduit


得捷:
SWITCH SNAP ACTION SPDT 10A 125V


贸泽:
Limit Switches LIMIT SWITCH


艾睿:
The SZL-WLC-C-N limit switch, developed by Honeywell, can provide your project motion controlled data, as the switch itself is activated through movement or the presence of another object.


Allied Electronics:
Industrial Limit Switches


Newark:
# HONEYWELL  SZL-WLC-C-N  Limit Switch, Side Rotary Rod, SPDT, 10 A, 250 V, 0.38 N-m, SZL-WL Series


MASTER:
MICRO SWITCH™ Global Limit Switches: SZL-WL Series General Purpose Limit Switch, Additional Over Travel C Series 90° Total Travel, Side Rotary, Adjustable Rod Actuator, 1NC 1NO Single Pole Double Throw SPDT, Double Break, 0.5 in - 14NPT Conduit


Online Components:
MICRO SWITCH™ Global Limit Switches: SZL-WL Series General Purpose Limit Switch, Additional Over Travel C Series 90° Total Travel, Side ...


SZL-WLC-C-N中文资料参数规格
技术参数

额定电压DC 30 V

额定电压AC 125 V

额定电流 10A AC, 6A DC

触点类型 SPDT

额定电流Max 10A @250VAC

工作温度Max 80 ℃

工作温度Min -10 ℃

额定电压AC Max 480 V

封装参数

安装方式 Panel, Screw

外形尺寸

高度 218.4 mm

物理参数

触点材质 Silver

工作温度 -10℃ ~ 80℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买SZL-WLC-C-N
型号: SZL-WLC-C-N
描述:MICRO SWITCH™ Global Limit Switches: SZL-WL Series General Purpose Limit Switch, Additional Over Travel C Series 90° Total Travel, Side Rotary, Adjustable Rod Actuator, 1NC 1NO Single Pole Double Throw SPDT, Double Break, 0.5in - 14NPT Conduit
