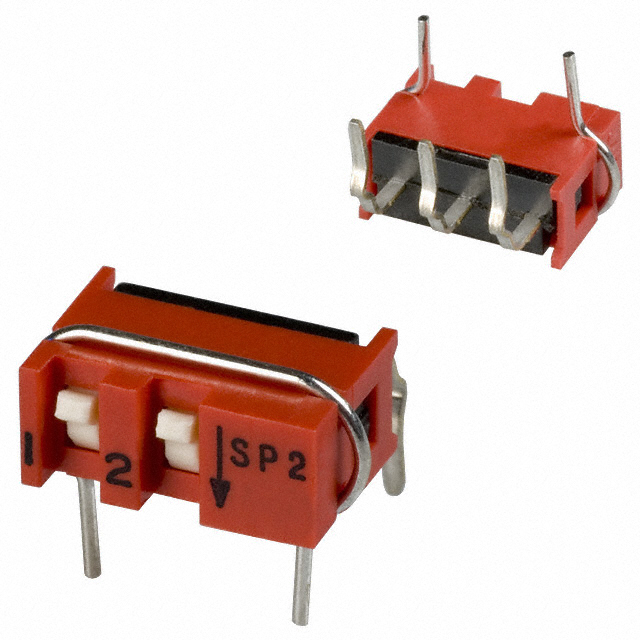

DIP Switches / SIP Switches SIP R/A 2POS
Switch DIP ON OFF SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
得捷:
SWITCH SLIDE DIP SPST 10MA 20V
贸泽:
DIP Switches / SIP Switches SIP R/A 2 POS
艾睿:
Switch DIP OFF ON SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP ON OFF SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
Verical:
Switch DIP OFF ON SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
MASTER:
Switch DIP ON OFF SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
Online Components:
Switch DIP ON OFF SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP ON OFF SPST 2 Recessed Slide 0.01A 20VDC PC Pins 1000Cycles 2.54mm Thru-Hole Tube
Win Source:
SWITCH SLIDE DIP SPST 10MA 20V / Dip Switch SPST 2 Position Through Hole, Right Angle Slide Standard Actuator 10mA 20VDC
额定电压DC 20 V
额定电流 100 mA
针脚数 2
额定电流Max 0.01 A
额定电压 20 VDC
额定电压DC Max 20 V
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 In-Line
长度 7.58 mm
高度 4.3 mm
封装 In-Line
触点材质 Beryllium Copper Alloy
工作温度 -20℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SP02A C&K Components | 当前型号 | 当前型号 |
SPA02AB C&K Components | 类似代替 | SP02A和SPA02AB的区别 |
