低功耗复位电路 Low Power Reset Circuit
If your core processor fails to meet your circuit"s demands, use the microprocessor supervisory circuit from STMicroelectronics as a backup. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a typical reset threshold voltage of 3.06 V, with a minimum of 2.98 V and a maximum of 3.15 V. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 105 °C.
电源电压DC 5.50V max
耗散功率 320 mW
阈值电压 3.06 V
复位电压Min 2.98 V
复位电压Max 3.15 V
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

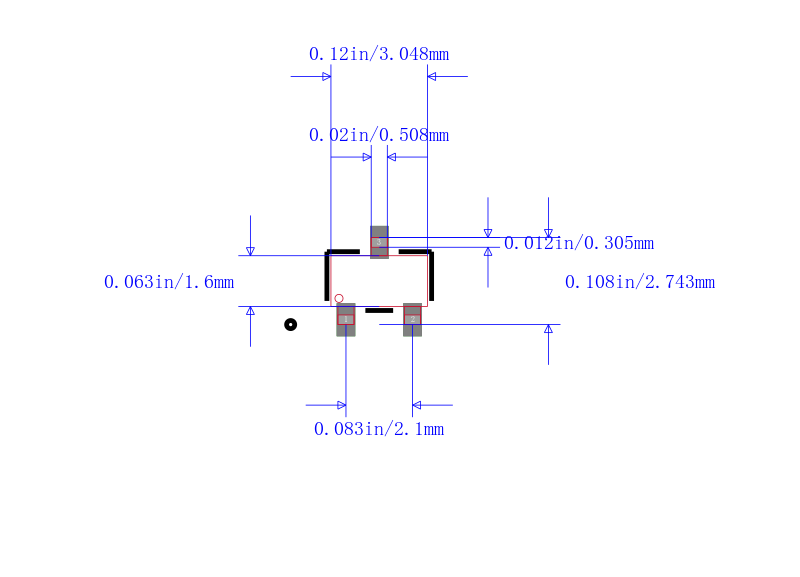

封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STM1817TWX7F ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
MCP101T-315I/TT 微芯 | 功能相似 | STM1817TWX7F和MCP101T-315I/TT的区别 |
