STM706系列 4.38 V 160 ms 5 V 表面贴装 监控器 - SOIC-8
In the event that a core processor fails in your circuit, the processor from STMicroelectronics supervisory ensures that there is a backup to take over. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.38 V, with a minimum of 4.25 V and a maximum of 4.5 V.
输出电流 20 mA
供电电流 0.06 mA
耗散功率 320 mW
阈值电压 4.38 V
复位电压Min 4.25 V
复位电压Max 4.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 8

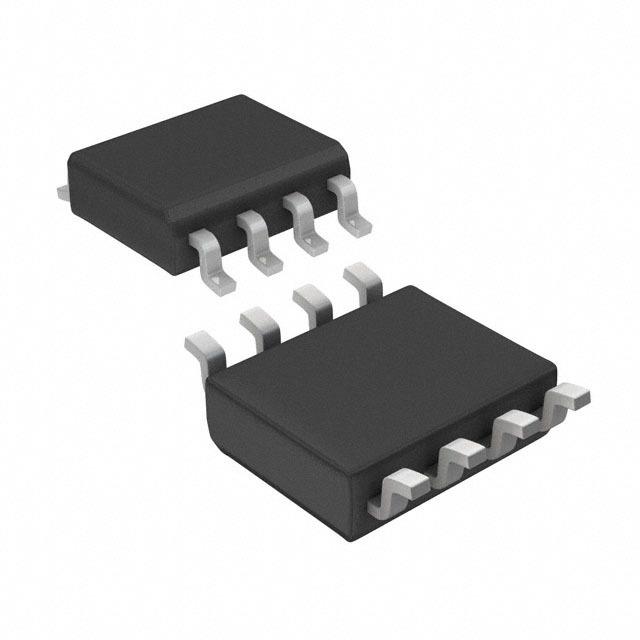

封装 SO-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SO-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
