STMICROELECTRONICS SR2UABU 监控器, 低电平有效, 漏极开路复位, 1.65V-5.5V输入, UDFN-6
In the event that a core processor fails in your circuit, the processor from STMicroelectronics supervisory ensures that there is a backup to take over. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a minimum operating supply voltage of 1.65 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 85 °C.
电源电压DC 1.65V min
供电电流 0.003 mA
针脚数 6
阈值电压 Adjustable
复位电压Min 0.3 V
复位电压Max 5.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

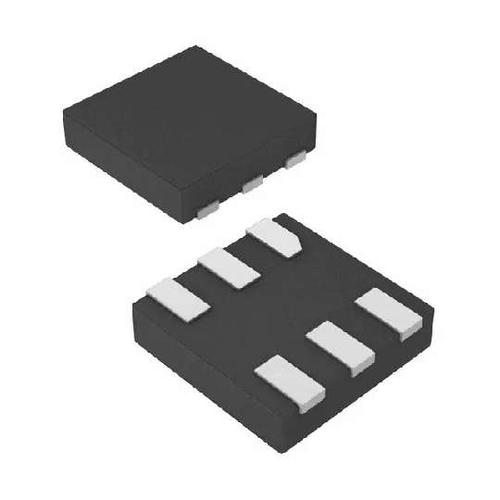

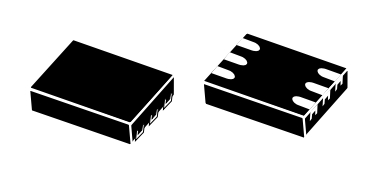

封装 UDFN-6
长度 1.6 mm
宽度 1.3 mm
高度 0.55 mm
封装 UDFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
