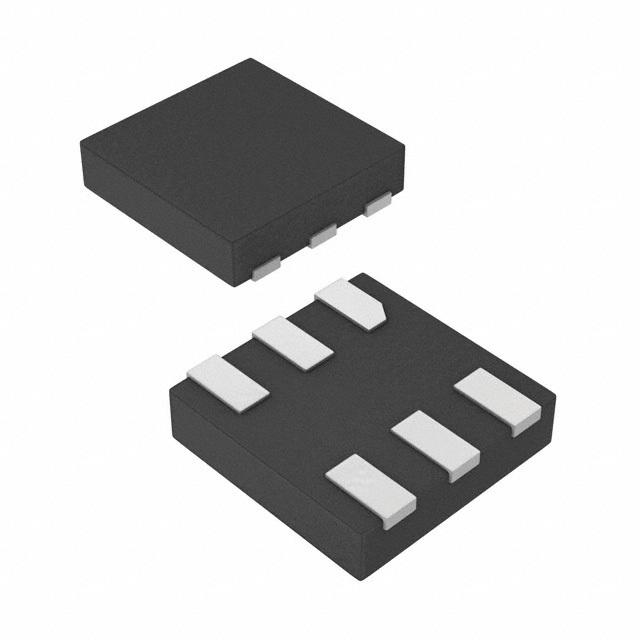

STMICROELECTRONICS SR1PBBU 监控器, 低电平有效, 漏极开路复位, 2V-5.5V输入, UDFN-6
By using the microprocessor supervisory circuit from STMicroelectronics your circuit will remain safe if something happens to the main processor. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a minimum operating supply voltage of 2 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 2.00V min
供电电流 0.001 mA
针脚数 6
阈值电压 Adjustable
复位电压Min 0.3 V
复位电压Max 5.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 6
封装 UDFN-6
长度 1.5 mm
宽度 1.05 mm
高度 0.6 mm
封装 UDFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
