SN105125DBVR

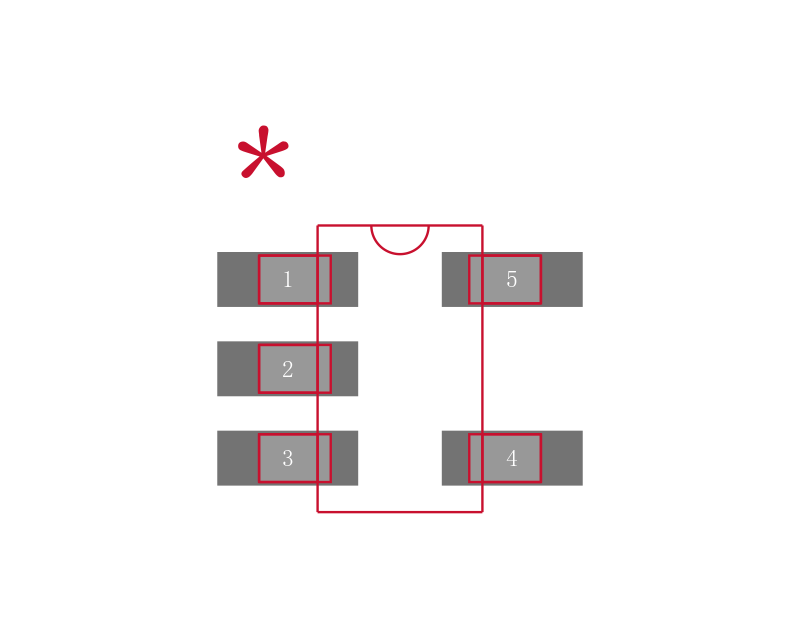

TEXAS INSTRUMENTS  SN105125DBVR  固定电压稳压器, LDO, 3V至5.25V, 1V压差, 1.2V输出, 150mA输出, SOT-23-5

The is a low-dropout LDO Linear Regulator with an output tolerance of ±2% over the operating range. The device is optimized for low noise applications and has a low quiescent current enable <0.8V. The device has a low-dropout LDO voltage at full load. The power okay function monitors the output voltage and indicates when an error occurs in the system active low. In the event of an output fault such as overcurrent, thermal shutdown or dropout, the power okay output is pulled low open drain. The device has a fast transient response recovery capability in the event of load transition from heavy load to light load. The device also minimizes overshoot during this condition. During power down, the output capacitor and load are de-energized through the internal active shutdown clamp, which is turned on when the device is disabled.

.

150µA Load independent low ground current

.

Current limiting

.

Thermal shutdown

.

Low sleep state current OFF mode

.

Fast transient response

.

Low variation due to load and line regulation

.

Output stable with low ESR capacitors

.

TTL logic controlled enable input
