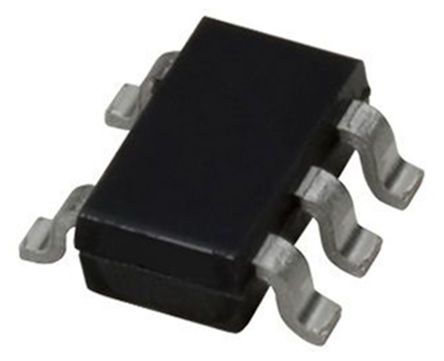

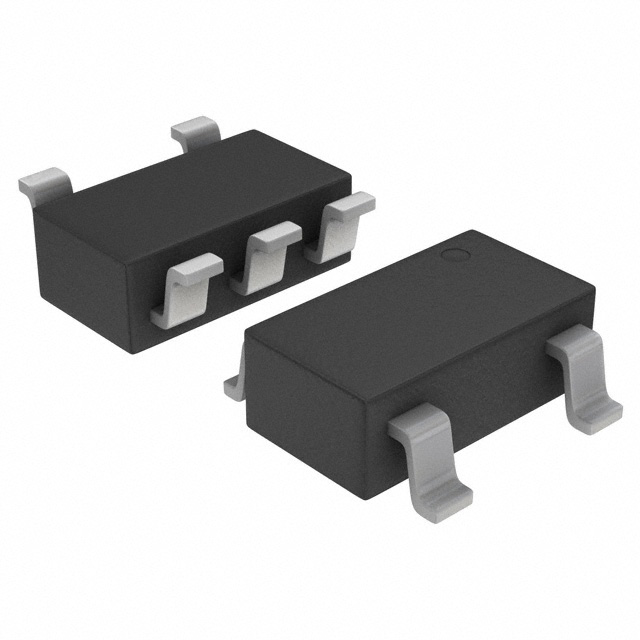

SMF05.TCT

TVS Diode Array for ESD and Latch-Up Protection 200W, SMF Series, Semtech200 Watts Peak Pulse Power tp = 8/20μs Transient protection for data lines to: IEC 61000-4-2 ESD ±15kV air, ±8kV contact IEC 61000-4-4 EFT 40A 5/50ns Protects I/O lines Low leakage current ### 瞬态电压抑制器，Semtech

极性Polarization| 单向 Unidirectional

\---|---

反向关断电压/工作电压VRWMReverse Standoff Voltage| 5V

反向击穿电压VBRBreakdown Voltage| 6V

峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 200W

峰值脉冲电流IPPmPeak Forward Surge Current| 12A

额定耗散功率PdPower dissipation|

Description & Applications| Features • TVS Diode Array For ESD and Latch-Up Protection • ESD protection for data lines to IEC 61000-4-2 ESD ±15kV air, ±8kV contact IEC 61000-4-4 EFT 40A 5/50ns • Small package for use in portable electronics • Protects five I/O lines • Working voltage: 5V • Low leakage current • Low operating and clamping voltages • Solid-state silicon-avalanche technology

描述与应用| 特点 •TVS阵列的ESD和闭锁保护•ESD保护的数据线？ IEC61000-4-2（ESD）±15kV（空气），±8kV（接触） IEC61000-4-4（EFT）40A（5/50ns） 小包装使用在便携式电子？？ •保护5个I / O线 •工作电压：5V？？ •低漏电流 •低工作电压和钳位 •固态硅雪崩技术
