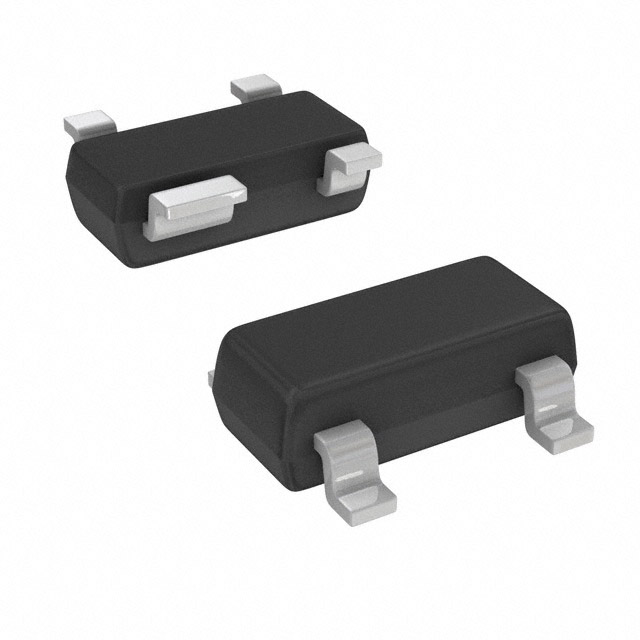

STM6315R 系列 2.63 V 1.5 ms 表面贴装 开漏 微处理器 复位 - SOT-143-4
If your core processor fails to meet your circuit"s demands, use the microprocessor supervisory circuit from STMicroelectronics as a backup. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a typical reset threshold voltage of 2.63 V, with a minimum of 2.58 V and a maximum of 2.68 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
供电电流 0.015 mA
耗散功率 0.32 W
阈值电压 2.63 V
复位电压Min 2.58 V
复位电压Max 2.68 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
封装 TO-253-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STM6315RAW13F ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STM6315RGW13F 意法半导体 | 类似代替 | STM6315RAW13F和STM6315RGW13F的区别 |
TC1270ANRVRCTR 微芯 | 功能相似 | STM6315RAW13F和TC1270ANRVRCTR的区别 |
APX812-29UG-7 美台 | 功能相似 | STM6315RAW13F和APX812-29UG-7的区别 |
