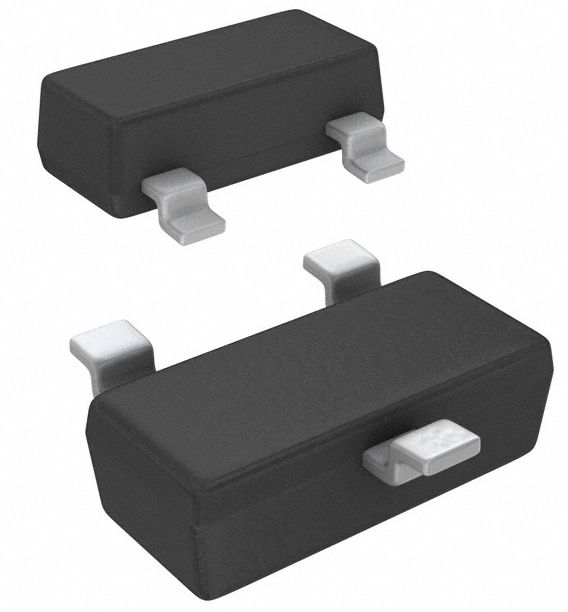

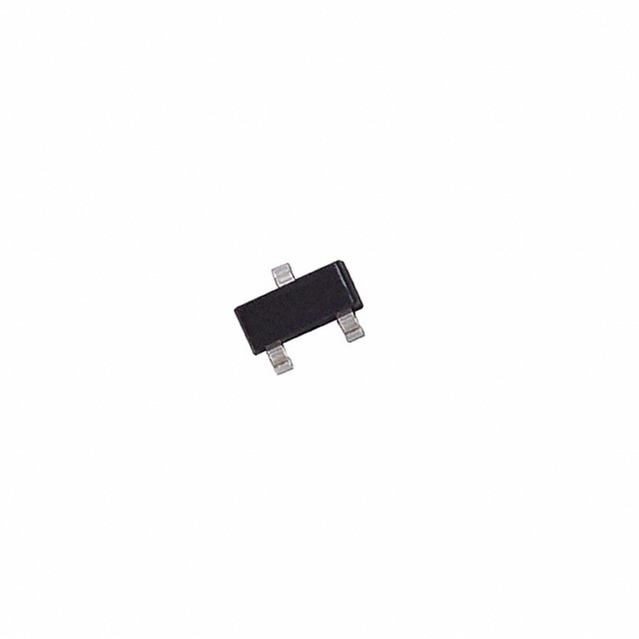

STM1818系列 2.55 V 100 ms 表面贴装 低功率 复位电路 - SOT-23-3
Your circuit won"t fail if its main processor goes out thanks to this microprocessor supervisory circuit from STMicroelectronics. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has a typical reset threshold voltage of 2.55 V, with a minimum of 2.47 V and a maximum of 2.64 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V.
电源电压DC 5.50V max
耗散功率 320 mW
阈值电压 2.55 V
复位电压Min 2.47 V
复位电压Max 2.64 V
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STM1818RWX7F ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
ADM1818-20ART-REEL 亚德诺 | 完全替代 | STM1818RWX7F和ADM1818-20ART-REEL的区别 |
