极低静态电流 BiCMOS 稳压器
Stable power is ideal for better processing this LDO linear regulator developed by STMicroelectronics will help do so. Its typical dropout voltage at current is 0.2@800mA|0.25@1A|0.3@1.3A V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 1.3Min A. It only needs a voltage of at least 3 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 30mV and line regulation of 15mV is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.4@800mA|0.45@1A|0.5@1.3A V.
输出接口数 1
输出电压 3.3 V
输出电流 1.3 A
静态电流 0.35 mA
跌落电压 300 mV
输入电压Max 5.5 V
输入电压Min 3 V
输出电流Max 1.3 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±2 %
输入电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 6

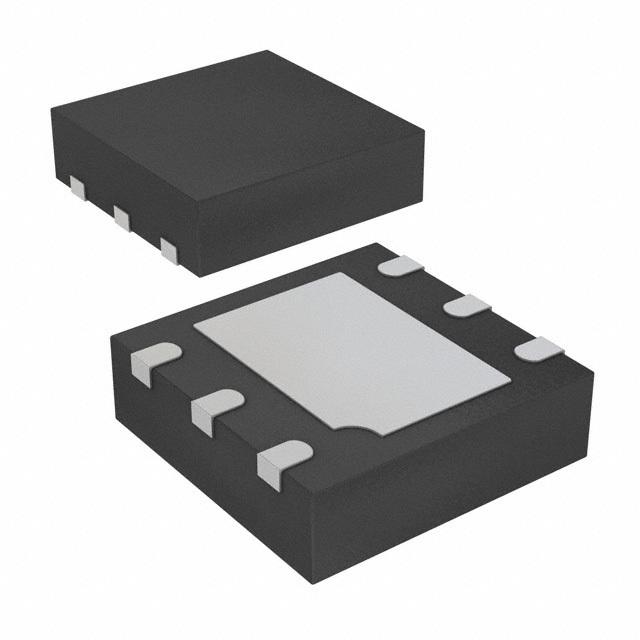

封装 DFN-6
宽度 3 mm
封装 DFN-6
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ST1L05APU33R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
ST1L05CPU33R 意法半导体 | 类似代替 | ST1L05APU33R和ST1L05CPU33R的区别 |
