STM6321系列 3.08V 140ms 5引脚 监控器 带看门狗定时器和复位按键
Do your circuit"s needs demand a great deal from your processor? The microprocessor supervisory circuit from STMicroelectronics is the perfect backup solution. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a typical reset threshold voltage of 3.08 V, with a minimum of 3.04 V and a maximum of 3.11 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.50V max
供电电流 0.012 mA

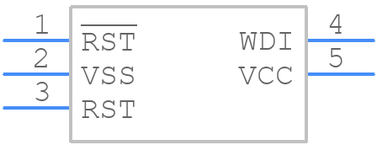

针脚数 5
耗散功率 320 mW
阈值电压 3.08 V
复位电压Min 3.04 V
复位电压Max 3.11 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 7 V
电源电压Min 0.3 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
