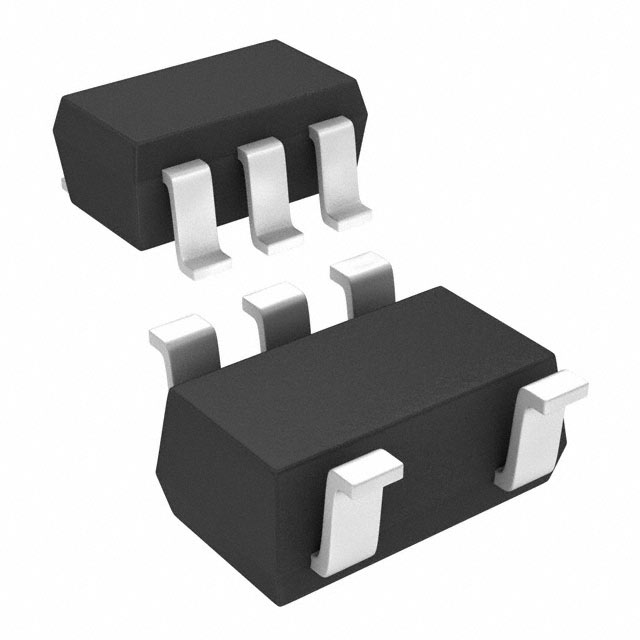

STM6824系列 4.39 V 140 ms 监控器 带看门狗定时器和复位按键
监控器 推挽式/图腾柱 1 通道 SOT-23-5
得捷:
IC SUPERVISOR 1 CHANNEL SOT23-5
艾睿:
Keep your circuit secure if your main processor goes out by using this STM6824MWY6F microprocessor supervisory circuit from STMicroelectronics. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 85 °C. It has a typical reset threshold voltage of 4.39 V, with a minimum of 4.314 V and a maximum of 4.446 V.
安富利:
Processor Supervisor 4.39V 2.5V/3V/3.3V/5V 5-Pin SOT-23 T/R
Chip1Stop:
Processor Supervisor 4.39V 1 Active High/Active Low/Push-Pull 5-Pin SOT-23 T/R
儒卓力:
**SUPERVISOR 4,39V 3µA SOT23-5L **
电源电压DC 5.50V max
耗散功率 320 mW
阈值电压 4.39 V
复位电压Min 4.314 V
复位电压Max 4.446 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压 5.5 V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
