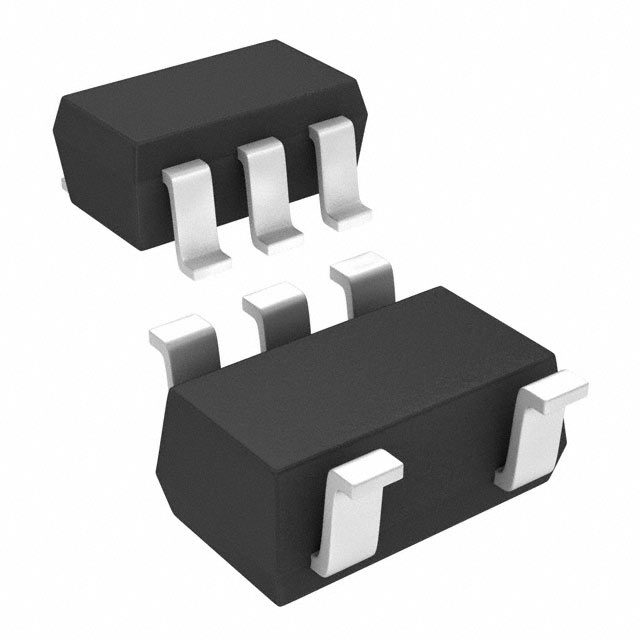

ST715XX25 系列 24 V 85 mA 高输入电压 低压差 线性稳压器 - SOT-23-5L
PMIC - 稳压器 - 线性 正 固定 1 输出 85mA SOT-23-5
立创商城:
ST715M25R
得捷:
IC REG LINEAR 2.5V 85MA SOT23-5
艾睿:
This LDO ST715M25R linear regulator from STMicroelectronics gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.5@85mA V. This device has a maximum power dissipation of 1000 mW. This voltage regulation device&s;s single output can produce a current up to 0.085 A. By only needing an input voltage of 3 V with a maximum of 24 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Using a load regulation of 0.003%/mA and line regulation of 0.004%/V is needed for a programmable DC power supply. Its maximum power dissipation is 1000 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 1@85mA V. Its polarity is positive.
富昌:
ST715 系列 85 mA 2.5 V 固定输出 表面贴装 LDO 线性 稳压器 - SOT-23-5
Verical:
LDO Regulator Pos 2.5V 0.085A 5-Pin SOT-23 T/R
儒卓力:
**LDO H.INP.VOLT 2,5V 85mA SOT23 **
DeviceMart:
IC REG LDO 2.5V 85MA SOT23-5
输出接口数 1
输出电压 2.5 V
输出电流 85 mA
耗散功率 1 W
静态电流 4.15 µA
跌落电压 500 mV
输入电压Max 24 V
输入电压Min 3 V
输出电流Max 0.085 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 450 mW
精度 ±5 %
输入电压 ≤24 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ST715M25R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
ST715M33R 意法半导体 | 类似代替 | ST715M25R和ST715M33R的区别 |
AAT3221IGV-2.5-T1 Skyworks Solutions | 功能相似 | ST715M25R和AAT3221IGV-2.5-T1的区别 |
