调整脉冲宽度调制器 REGULATING PULSE-WIDTH MODULATORS
This voltage mode PWM controller from Texas Instruments will allow you to encode messages using pulsating voltages in your design. Its 2 PWM outputs produce a current of 100Max mA. This voltage mode driver supports boost|buck|flyback|forward|full-bridge|half-bridge|push-pull topology. This part offers a switching frequency of 450Typ kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage mode driver has an operating temperature range of 0 °C to 70 °C. This device has a minimum operating supply voltage of 8 V and a maximum of 40 V. This voltage mode driver"s maximum duty cycle is 45Min %.
频率 722 kHz
电源电压DC 8.00V min
输出接口数 2
输出电压 4.6V ~ 5.4V
输出电流 100 A
调节输出数 2
上升时间 200 ns
开关频率 450 kHz
拓扑结构 Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
占空比 45 %
最大占空比 45 %
下降时间 100 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
安装方式 Surface Mount

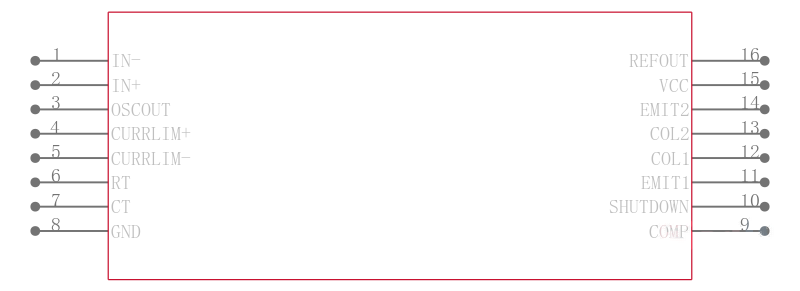

引脚数 16

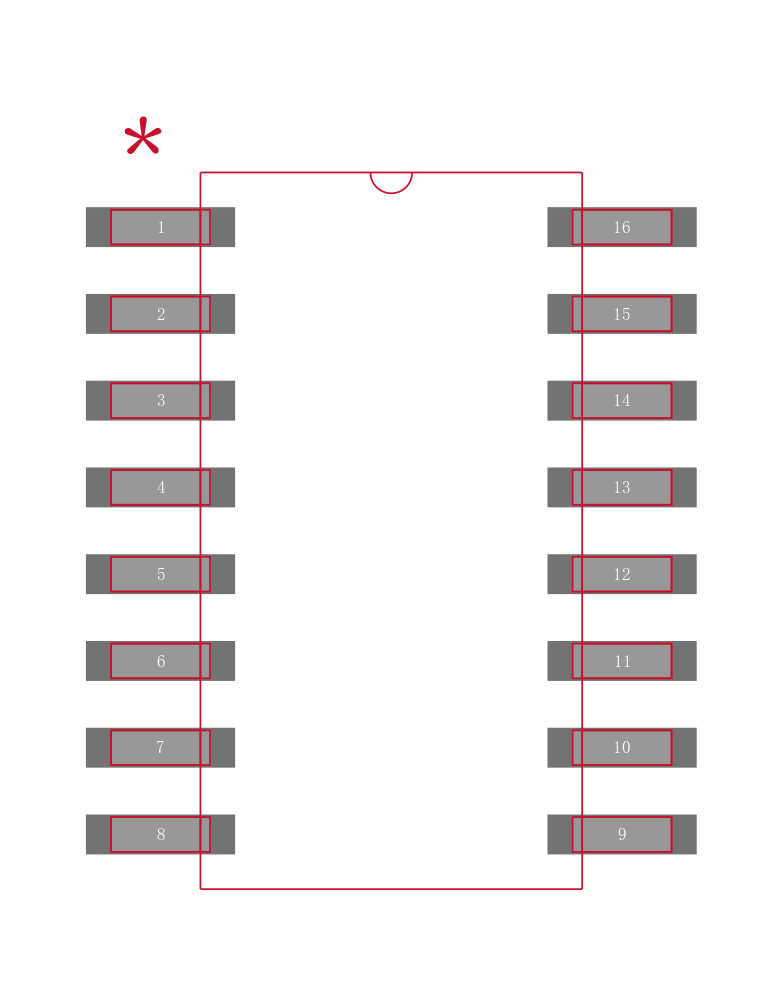

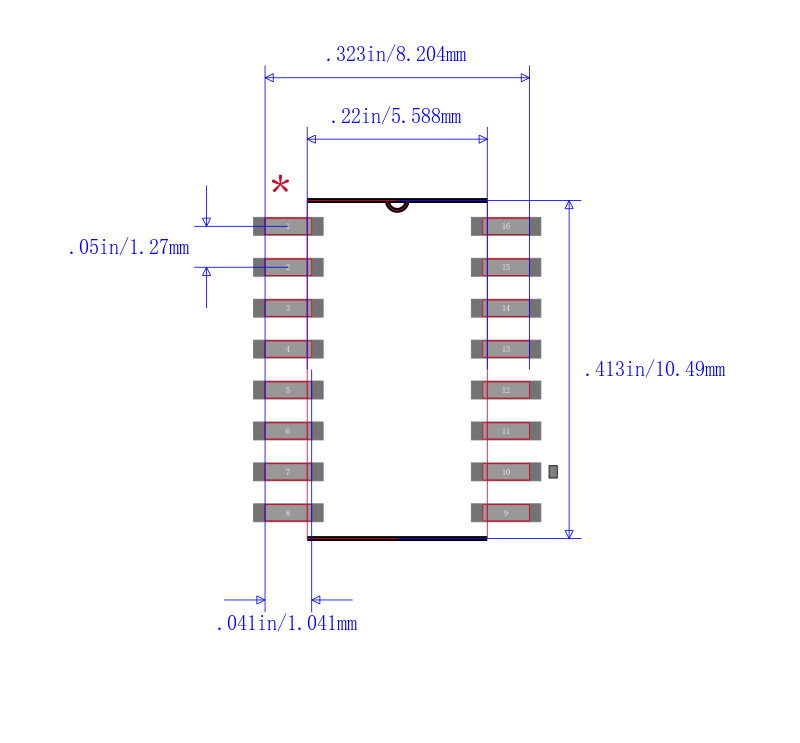

封装 SOP-16
长度 10.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SG3524NSR TI 德州仪器 | 当前型号 | 当前型号 |
SG3524DG4 德州仪器 | 类似代替 | SG3524NSR和SG3524DG4的区别 |
SG3524DR 德州仪器 | 功能相似 | SG3524NSR和SG3524DR的区别 |
SG3524D 德州仪器 | 功能相似 | SG3524NSR和SG3524D的区别 |
