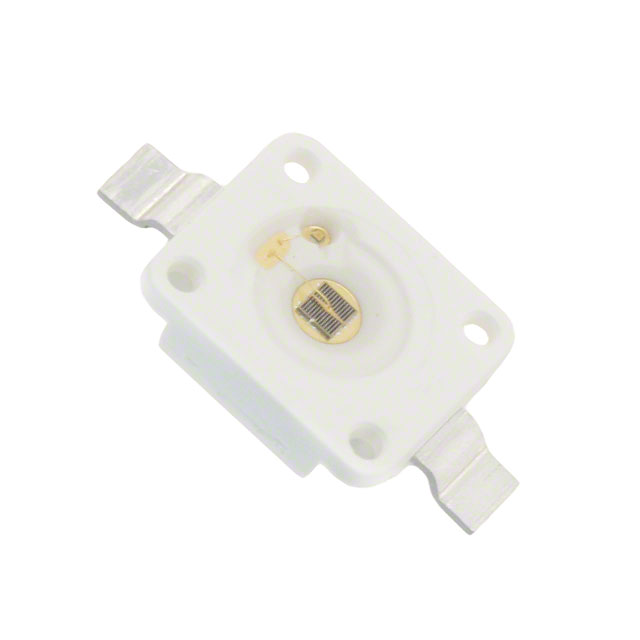

LED,红外,IR DRAGON,850nm,1.5V, 1000mA,
Infrared IR Emitter 860nm 1.5V 1A 180mW/sr @ 1A 120° 2-SMD, Gull Wing
得捷:
EMITTER IR 860NM 1A SMT
欧时:
LED,红外,IR DRAGON,850nm,1.5V, 1000mA,
艾睿:
Infrared Emitter 860nm 530mW/sr Circular Top Mount Automotive 2-Pin SMD T/R
安富利:
* IR lightsource with high efficiency * Low thermal resistance Max. 9 K/W * Centroid wavelength 850 nm * ESD safe up to 2 kV acc. to ANSI/ESDA/JEDEC JS-001-2011 * Superior Corrosion Robustness see chapter package outlines * The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors. * Package: SMT package
Chip1Stop:
LED IrLED 860nm 2-Pin SMD T/R
Win Source:
EMITTER IR 860NM 1A SMT / Infrared IR Emitter 860nm 1.5V 1A 180mW/sr @ 1A 120° 2-SMD, Gull Wing
工作电压 1.8 V
正向电压 1.5 V
波长 860 nm
视角 120°
峰值波长 860 nm
上升时间 10 ns
测试电流 1000 mA
正向电流 1 A
正向电压Max 2.9 V
正向电流Max 1 A
下降时间 10 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 140 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-2
封装 SMD-2
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Not For New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SFH 4232-Z Osram Opto 欧司朗 | 当前型号 | 当前型号 |
ALFD29910DN-W-24V IDEC | 功能相似 | SFH 4232-Z和ALFD29910DN-W-24V的区别 |
