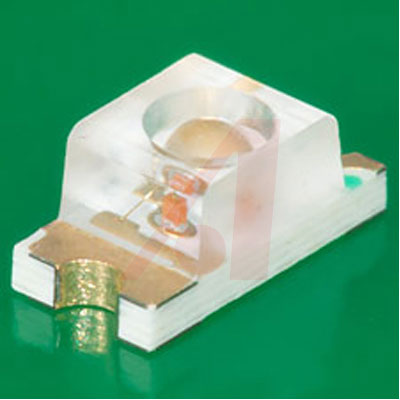

SM1206 Series Blue 30° Water Clear 408nm 3.4V 1206 Surface Mount LED
** 1204 Package SMT LEDs**
Bivar surface mount 1204 package LEDs can be used in almost any lighting or indication application. The right angle package is ideal for small scale applications such as edge lighting or general indication. Low power consumption and excellent long life reliability are suitable for battery powered equipment. A wide variety of wavelength and intensity combinations are available to meet any illumination need.
额定功率 100 mW
正向电压 3.4 V
波长 408 nm
视角 30°
峰值波长 407.5 nm
耗散功率 100 mW
测试电流 20 mA
正向电流 25 mA
正向电压Max 4.2 V
正向电流Max 25 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.40 mm
封装公制 3216
封装 1206
颜色 Blue
工作温度 -30℃ ~ 80℃ TA
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
