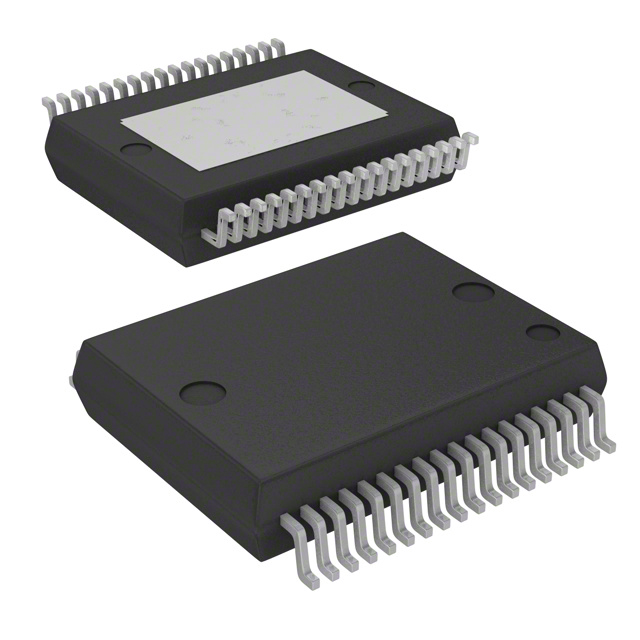

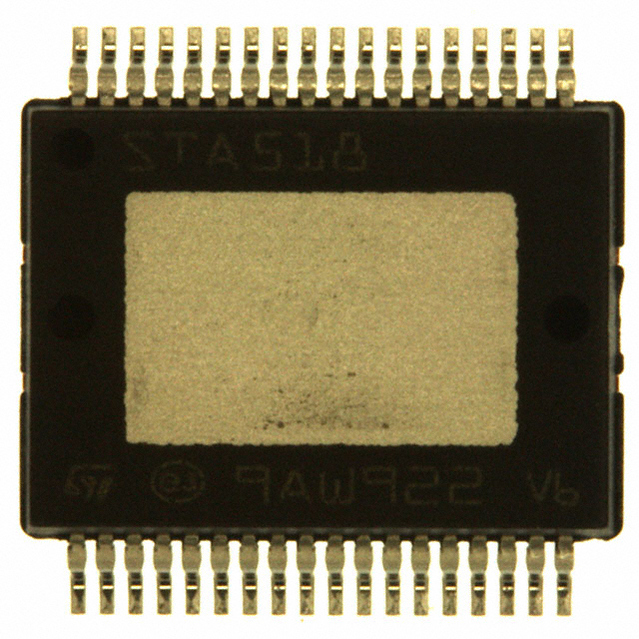

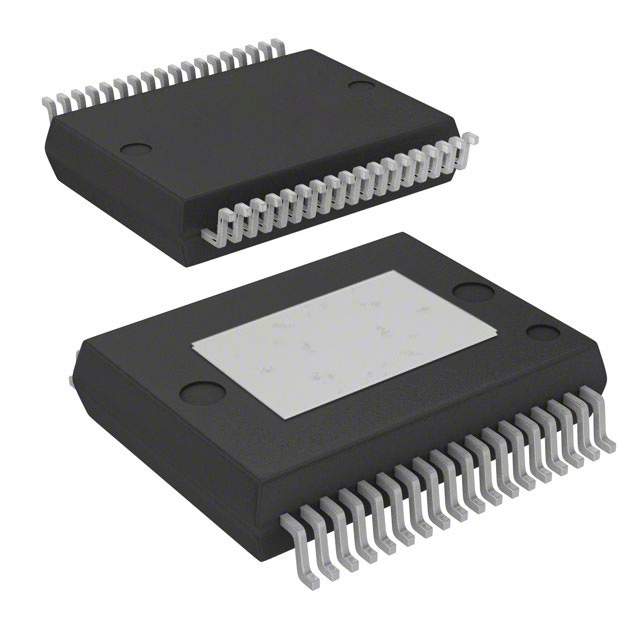

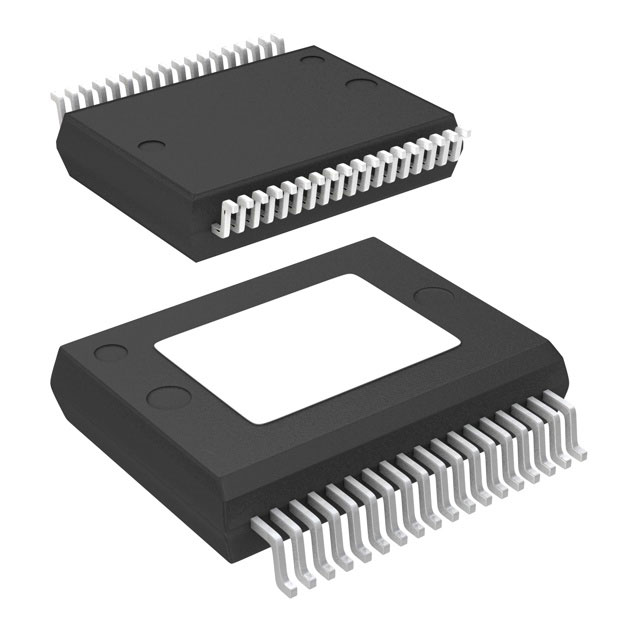

STA51813TR

40V 3.5A四路电源半桥 40V 3.5A quad power half bridge

**Description**

STA518 is a monolithic quad half bridge stage in Multipower BCD Technology. The device can be

used also as dual bridge or reconfigured, by connecting CONFIG pin to Vdd pin, as single bridge with double current capability. The device is particularly designed to make the output stage of a stereo All-Digital High Efficiency DDX™ amplifier capable to deliver an output power of 24W x 4 channels @ THD = 10% at Vcc 30V on 4W load in single ended configuration. It can also deliver 50 + 50W @ THD = 10% at Vcc 29V as output power on 8W load in BTL configuration and 70W @ THD = 10% at Vcc 34V on 8W in single paralleled BTL configuration. The input pins have threshold proportional to VL pin voltage.

**Feature**

■ Multipower BCD technology

■ Minimum input output pulse width distortion

■ 200mΩ RdsON complementary dmos output stage

■ CMOS compatible logic inputs

■ Thermal protection

■ Thermal warning output

■ Under voltage protection

■ Short circuit protection
