SLF10145T-220M1R9-H

固定电感器

固定器

得捷:
FIXED IND 22UH 1.9A 59.1MOHM SMD

立创商城:
22uH ±20% 1.9A 59.1mΩ

艾睿:

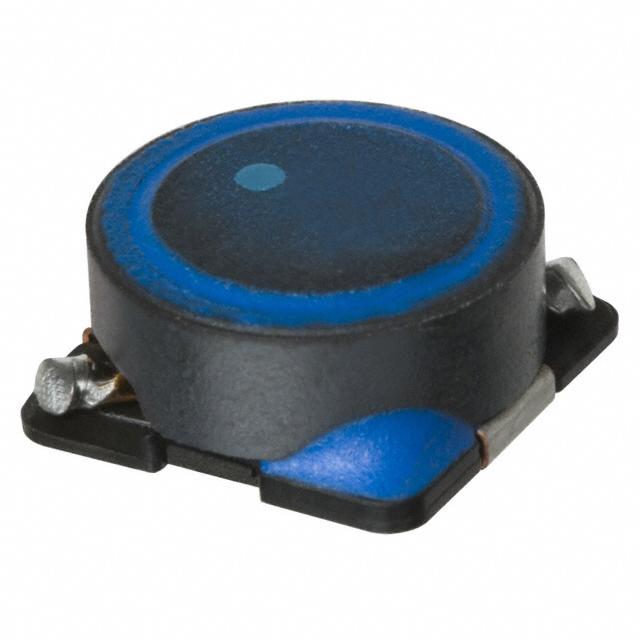

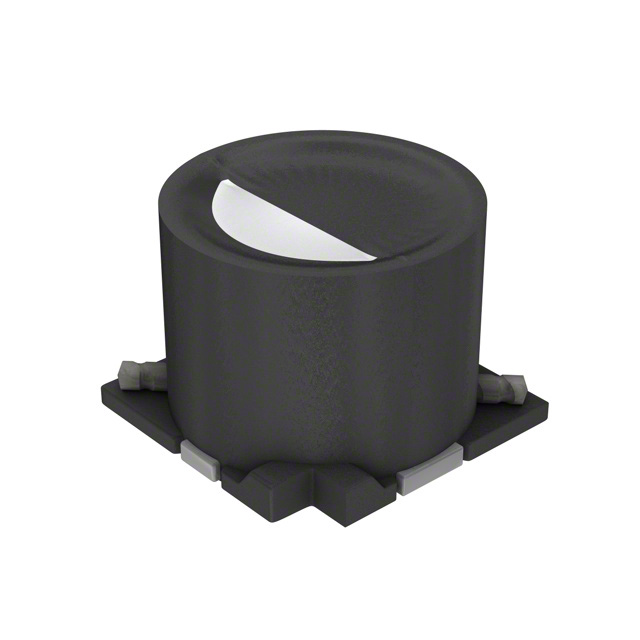

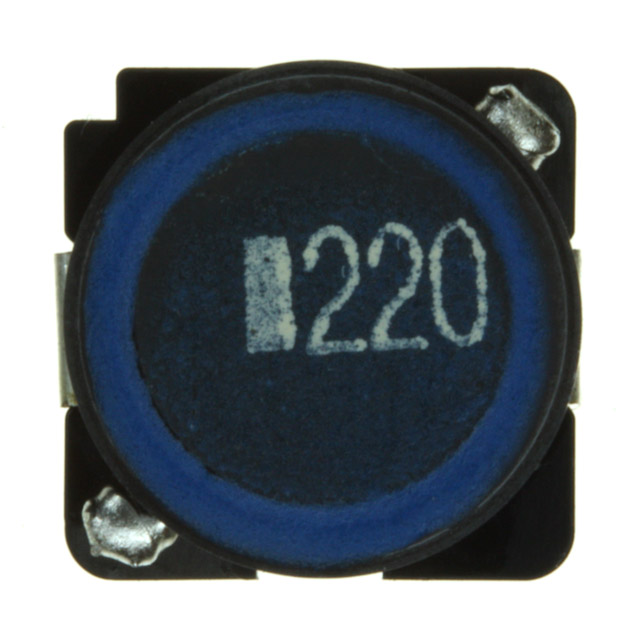

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SLF10145T-220M1R9-H surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 10.4 mm long, 4.8 mm tall and 10.4 mm deep. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 1.9Typ A with a maximum resistance of 70.92m Ohm. Its test frequency is 1K Hz. It has an inductance of 22u H. It has a tolerance of 20%.

安富利:
SMD INDUCTORSCOILS FOR POWER LINEWOUND, MAGNETIC SHIELDED

Verical:
Inductor Power Shielded Wirewound 22uH 20% 1KHz Ferrite 1.9A 0.07092Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 22uH 20% 1KHz Ferrite 1.9A 70.92mOhm DCR Automotive T/R
