微功耗稳压器 3-TO-252 -40 to 125
PMIC - 稳压器 - 线性 正 固定 1 输出 100mA TO-252-3
立创商城:
SM72238TDE-5.0/NOPB
德州仪器TI:
Micropower voltage regulator
得捷:
IC REG LINEAR FIXED POS STD REG
艾睿:
This LDO SM72238TDE-5.0/NOPB linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. It has an overall accuracy of ±0.5Typ %. Its typical dropout voltage at current is 0.05@100uA|0.38@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.2% and line regulation of 0.2%. The maximum dropout voltage is 0.08@100uA|0.45@100mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 5V 0.1A 3-Pin2+Tab TO-252
Chip1Stop:
LDO Regulator Pos 5V 0.1A 3-Pin2+Tab TO-252
Verical:
LDO Regulator Pos 5V 0.1A 3-Pin2+Tab TO-252 T/R
Newark:
# TEXAS INSTRUMENTS SM72238TDE-5.0/NOPB DC-DC CONVERTER, 3-TO-252
DeviceMart:
IC REG LDO 5V .1A TO-252-3
输出接口数 1
输出电压 5 V
输出电流 100 mA
跌落电压 380 mV
调节输出数 1
输入电压Max 30 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤30 V
安装方式 Surface Mount
引脚数 3

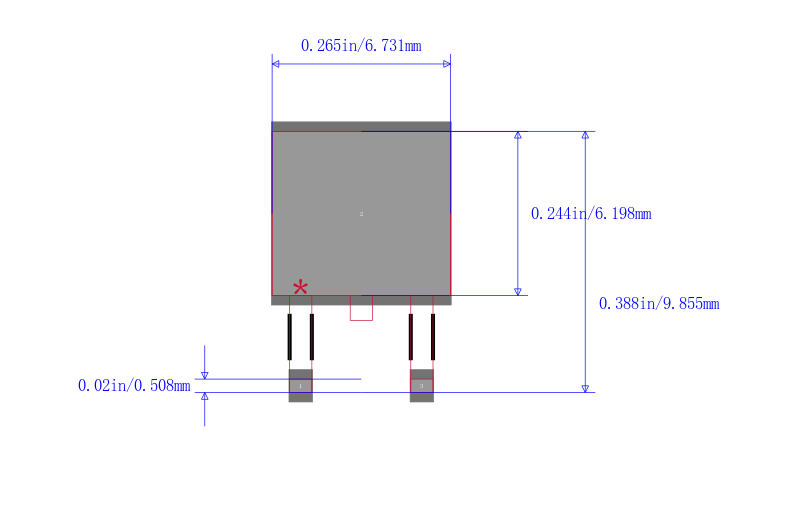

封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM72238TDE-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
SM72238TDX-5.0/NOPB 德州仪器 | 完全替代 | SM72238TDE-5.0/NOPB和SM72238TDX-5.0/NOPB的区别 |
SM72238TD-5.0/NOPB 德州仪器 | 类似代替 | SM72238TDE-5.0/NOPB和SM72238TD-5.0/NOPB的区别 |
