ST8R00 系列 微功耗 1A 同步 升压 DC-DC 转换器 - DFN-8
Adjust the voltage level of your devices with this step up DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 4 V and not exceeding a voltage of 6 V. With an adjustable output that has a voltage of 6 to 12 V, this is power management at its best. This converter is 90typ % efficient. This part offers a switching frequency of 1400 kHz in order to work properly. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -25 °C to 125 °C.
输出接口数 1
输出电压 6V ~ 12V
输出电流 1 A
针脚数 8
开关频率 1.2 MHz
开关电流 3 A
输入电压Max 6 V
输入电压Min 4 V
输出电压Max 12 V
输出电压Min 6 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -25 ℃
电源电压 4 V
电源电压Min 4 V
输入电压 4V ~ 6V
安装方式 Surface Mount
引脚数 8

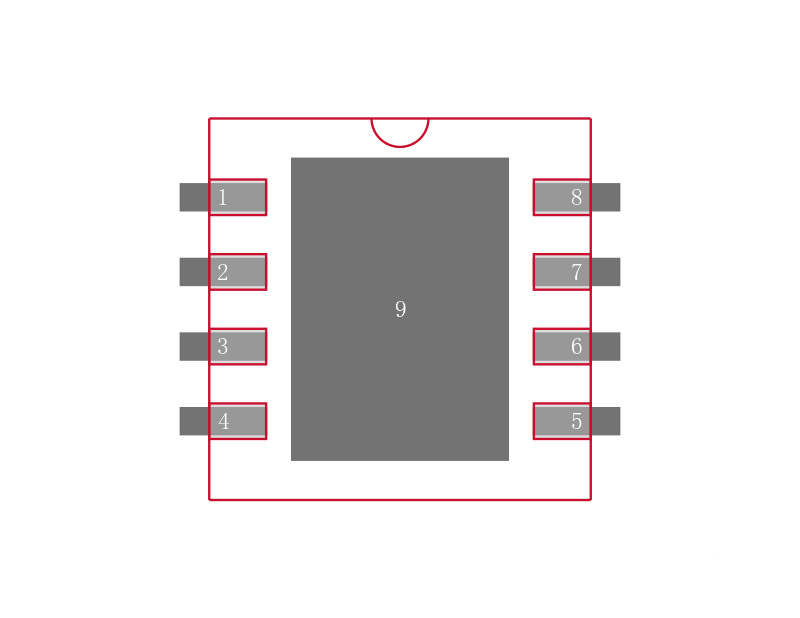

封装 DFN-8
封装 DFN-8
工作温度 -25℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
