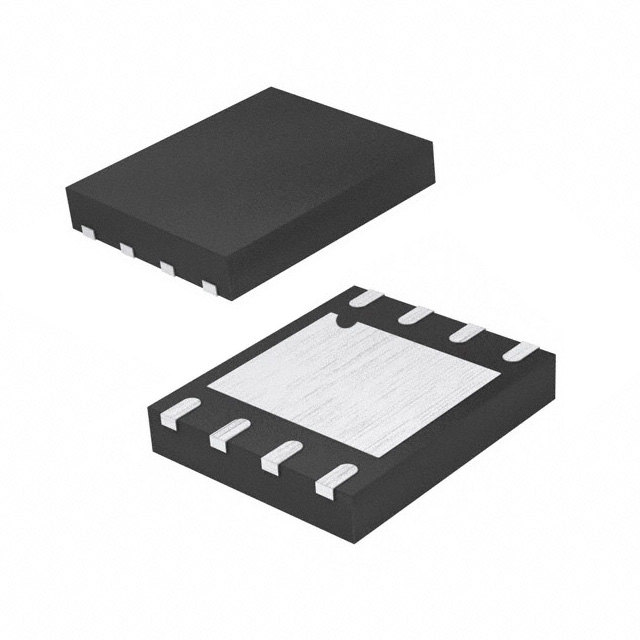

ST1S30 系列 3 A 1.5 MHz PWM 表面贴装 降压 开关稳压器 - DFN-8
开关稳压器 IC 输出
得捷:
IC REG BUCK ADJUSTABLE 3A 8DFN
立创商城:
降压型 Vin=2.7V~5.5V Vout=800mV~4.79V 3A
艾睿:
Adjust the voltage level of your devices with this step down ST1S30IPUR DC to DC converter from STMicroelectronics. This converter&s;s single output can produce a current up to 3Typ A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6 V, making it easy to control the power in your circuit. Using a load regulation of 0.2% and line regulation of 0.16%Vo/Vi is needed for a programmable DC power supply. This converter is 90typ % efficient. You can operate this at a switching frequency of 1200 to 1800 kHz. This converter has an operating temperature range of -25 °C to 125 °C.
安富利:
Conv DC-DC Single Step Down 2.7V to 6V 8-Pin DFN EP
Verical:
Conv DC-DC 2.7V to 6V Synchronous Step Down Single-Out 3A 8-Pin DFN EP T/R
DeviceMart:
IC REG BUCK SYNC 3A 8DFN
输出接口数 1
输出电压 0.8V ~ 1.2V
输出电流 3 A
开关频率 1.5 MHz
输入电压Max 6 V
输入电压Min 2.7 V
输出电压Max 4.79 V
输出电压Min 0.8 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -25 ℃
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 DFN-8
封装 DFN-8
工作温度 -25℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
