SDR0604-8R2ML

BOURNS  SDR0604-8R2ML  表面贴装功率电感器, SDR0604系列, 8.2 µH, ± 20%, 非屏蔽, 0.09 ohm, 1.5 A

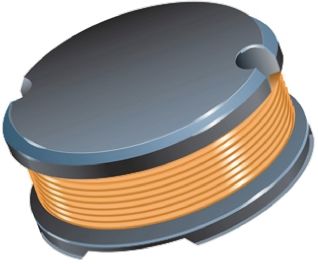

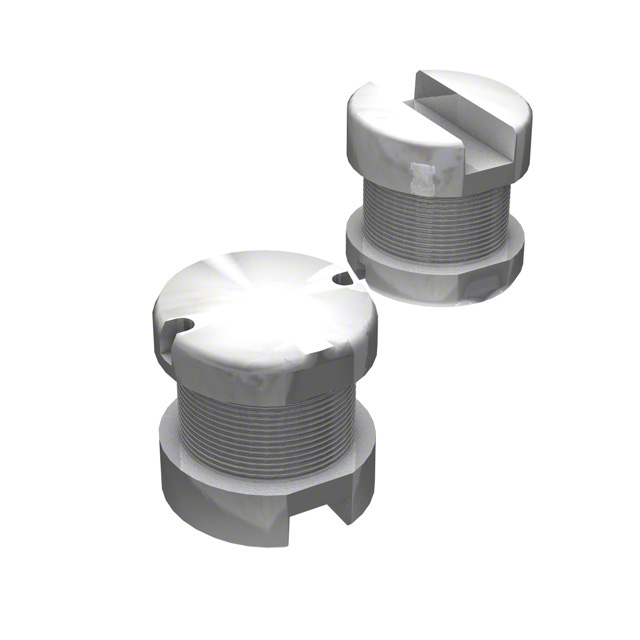

SDR0604 系列线绕扼流圈

提供 E12 系列

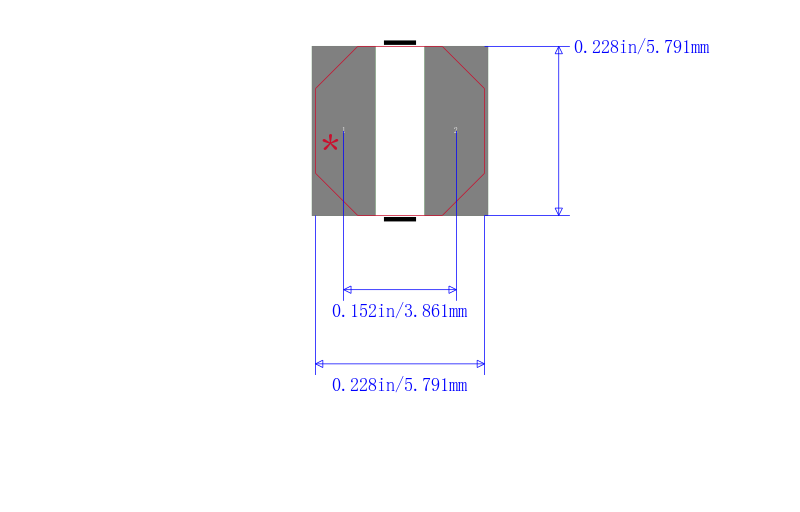

直径小，最大仅 5.8mm

剖面 4.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

立创商城:
8.2uH ±20% 1.5A 90mΩ

得捷:
FIXED IND 8.2UH 1.5A 90 MOHM SMD

欧时:
### SDR0604 系列线绕扼流圈提供 E12 系列 直径小，最大仅 5.8mm 剖面 4.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 8.2 µH, 1.5 A, 非屏蔽, 2.3 A, SDR0604系列, 5.8mm x 5.8mm x 4.8mm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR0604-8R2ML surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 8.2u H. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 90m Ohm. It has a tolerance of 20%. This product is 4.8 mm tall with a diameter of 5.8 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 26M Hz. This device is made with wirewound technology.

Allied Electronics:
WireWound SMD Inductor w/ FerriteCore, 8.2 uH +/-20%WireWound 1.5A Idc

安富利:
Ind Power Wirewound 8.2uH 20% 1KHz 20Q-Factor Ferrite 1.5A T/R

Chip1Stop:
Ind Power Wirewound 8.2uH 20% 1KHz 20Q-Factor Ferrite 1.5A T/R

Verical:
Inductor Power Unshielded Wirewound 8.2uH 20% 1KHz 20Q-Factor Ferrite 1.5A 0.09Ohm DCR Automotive T/R

MASTER:
Inductor Power Wirewound 8.2uH 20% 1KHz 20Q-Factor Ferrite 1.5A 90mOhm DCR Automotive T/R

Online Components:
Inductor Power Wirewound 8.2uH 20% 1KHz 20Q-Factor Ferrite 1.5A 90mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Wirewound 8.2uH 20% 1KHz 20Q-Factor Ferrite 1.5A 90mOhm DCR Automotive T/R
