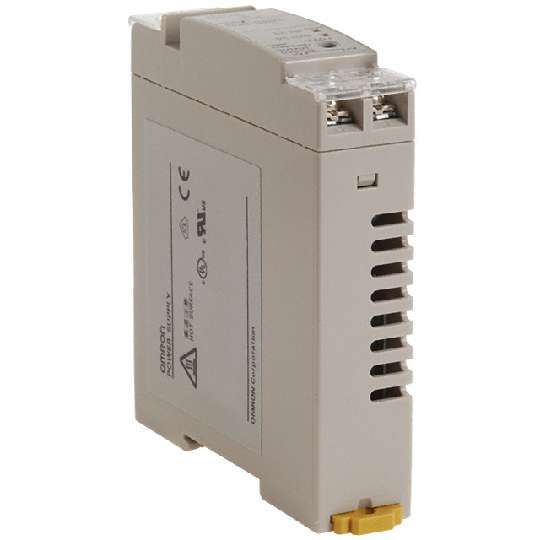

OMRON INDUSTRIAL AUTOMATION S8VS-01524 交流/直流电源, DIN轨, 开关模式, 固定输出, 85 V, 264 V, 15 W, 24 V, 650 mA
The is a 24V/15W 1-output switch mode Power Supply with indication monitor, screwless terminal blocks and simple functions for easy system commissioning. Side-by-side mounting directly in panels is possible. Mount to DIN-rail and lead-free solder. This power supply output is fixed.
- .
- Overvoltage protection
- .
- Red undervoltage alarm indication
- .
- 25 to 85% Operating ambient humidity
- .
- 3kVAC for one minute between all inputs and outputs, detection current 20mA Dielectric strength
- .
- 100MR min between all outputs and all inputs/PE terminals at 500VDC Insulation resistance
电源电压DC 264 V
额定电流 0.65 A
额定功率 15 W
输出接口数 1
输出电压 24 V
输出电流 0.65 A
输出功率 15 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 80 V
输入电压AC Max 264 v
输入电压AC Min 85 v
输出电流Max 650 mA
输入电流Min 0.45 A
输出功率Max 15 W
额定功率Max 15 W
输入电压 100VAC ~ 240VAC
安装方式 DIN Rail
引脚数 5
封装 100
长度 96.4 mm
宽度 85 mm
高度 85.0 mm
封装 100
重量 160 g
工作温度 -10℃ ~ 60℃
产品生命周期 Not Recommended for New Design
制造应用 Power Management, 电源管理, ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
S8VS-01524 Omron 欧姆龙 | 当前型号 | 当前型号 |
S8VK-G01524 欧姆龙 | 功能相似 | S8VS-01524和S8VK-G01524的区别 |
ABL8MEM24006 施耐德 | 功能相似 | S8VS-01524和ABL8MEM24006的区别 |
TBL 015-124 Traco Electronic | 功能相似 | S8VS-01524和TBL 015-124的区别 |
