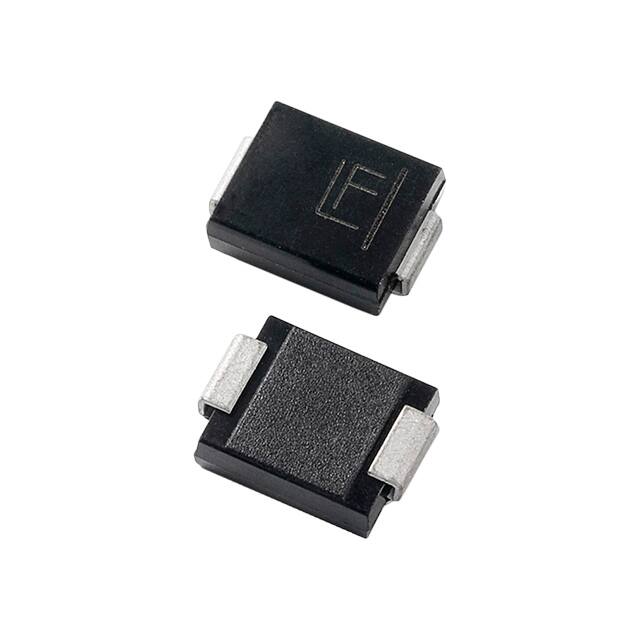

SMDJ15A-HRA

ESD 抑制器/TVS 二极管 3kW 15V Hi Rel 5% Uni-Directional

24.4V Clamp 123A Ipp Tvs Diode Surface Mount DO-214AB SMCJ

得捷:
TVS DIODE 15VWM 24.4VC DO214AB

立创商城:
单向 Vrwm:15V 3kW

贸泽:
ESD 抑制器/TVS 二极管 3kW 15V Hi Rel 5% Uni-Directional

艾睿:
This SMDJ15A-HRA TVS diode from Littelfuse protects against overvoltages. Its maximum leakage current is 2 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 24.4 V and minimum breakdown voltage is 16.7 V. Its peak pulse power dissipation is 3000 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

Verical:
TVS Diode Single Uni-Dir 15V 3KW Automotive 2-Pin SMC T/R
