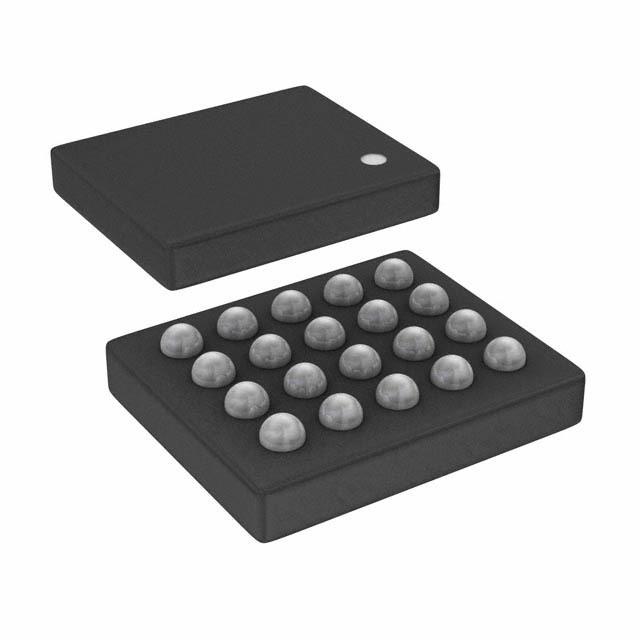

STMICROELECTRONICS STBB3JR 直流-直流开关降压-升压稳压器, 可调, 1.8V-5.5V输入, 1.2V-5.5V输出, 2A输出, Flip Chip-20
The is a fixed frequency high efficiency buck-boost DC-to-DC Converter which provides output voltage from 1.2 to 5.5V starting from input voltage from 1.8 to 5.5V. The device can operate with input voltages higher than, equal to or lower than the output voltage making the product suitable for cell lithium-Ion applications where the output voltage is within the battery voltage range. The low-RDSon N-channel and P-channel MOSFET switches are integrated and contribute to achieve high efficiency. The MODE pin allows the selection between auto mode and forced PWM mode, taking advantage from either lower power consumption or best dynamic performance. The device also includes soft-start control, thermal shutdown and current limit.
输出接口数 1
输出电压 1.2V ~ 5.5V
输出电流 2 A
针脚数 20
开关频率 2 MHz
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 20
封装 Flip-Chip-20
封装 Flip-Chip-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 消费电子产品, Consumer Electronics, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
