100V、150mA 恒定导通时间降压开关稳压器 8-VSSOP -40 to 125
The SM72485 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient, Buck bias regulator. This high voltage regulator contains an 100 V N-Channel Buck Switch. The device is easy to implement and is provided in the VSSOP and the thermally enhanced WSON package. The regulator is based on a control scheme using an ON time inversely proportional to VIN. This feature allows the operating frequency to remain relatively constant. The control scheme requires no loop compensation. An intelligent current limit is implemented with forced OFF time, which is inversely proportional to Vout. This scheme ensures short circuit control while providing minimum foldback. Other features include: Thermal Shutdown, VCC under-voltage lockout, Gate drive under-voltage lockout, Max Duty Cycle limiter, and a pre-charge switch.
输出接口数 1
输出电压 2.5 V
输出电流 150 mA
静态电流 485 µA
调节输出数 1
开关频率 50kHz ~ 1.1MHz
拓扑结构 Buck
输入电压Max 95 V
输入电压Min 6 V
输出电压Max 85 V
输出电压Min 2.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 95 V

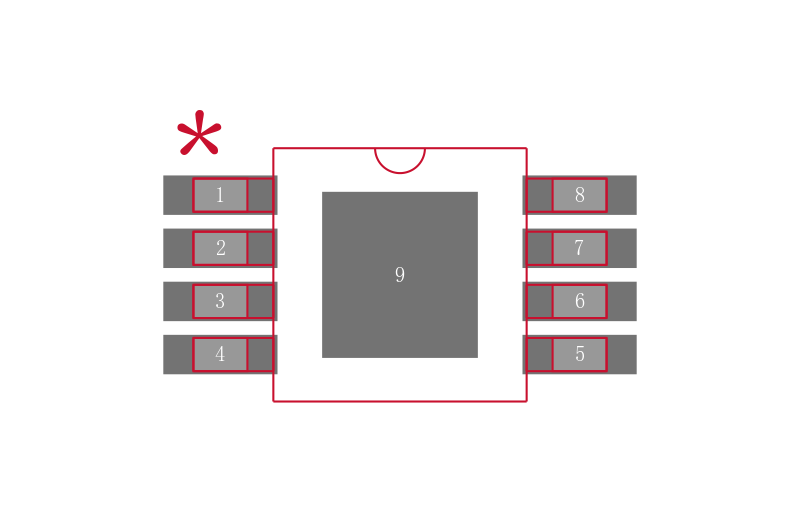

安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM72485MM/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
SM72485MME/NOPB 德州仪器 | 类似代替 | SM72485MM/NOPB和SM72485MME/NOPB的区别 |
