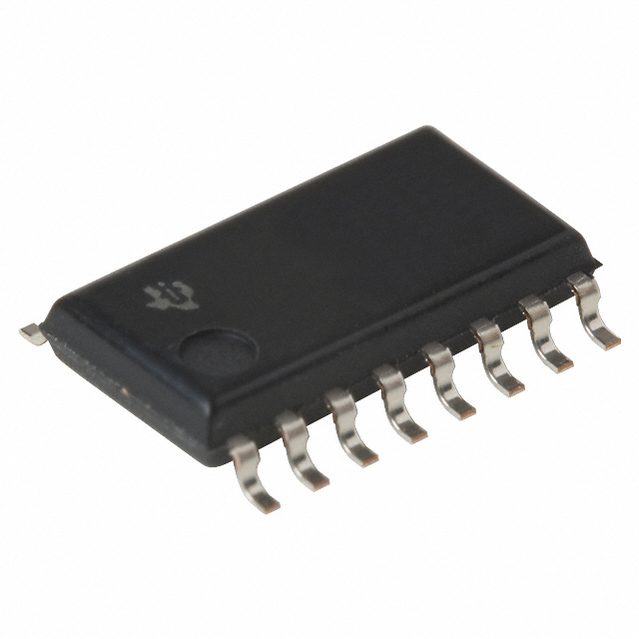

3线路至8线路解码器/多路解复用器 3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
Have multiple states to choose from in a logic circuit? Then look no further, this from Texas Instruments is all you need to select between states. This decoder has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
输出接口数 8
电路数 1
位数 8
电压波节 5.00 V, 3.30 V, 2.50 V
带宽 70.0 MHz
输入数 3
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount

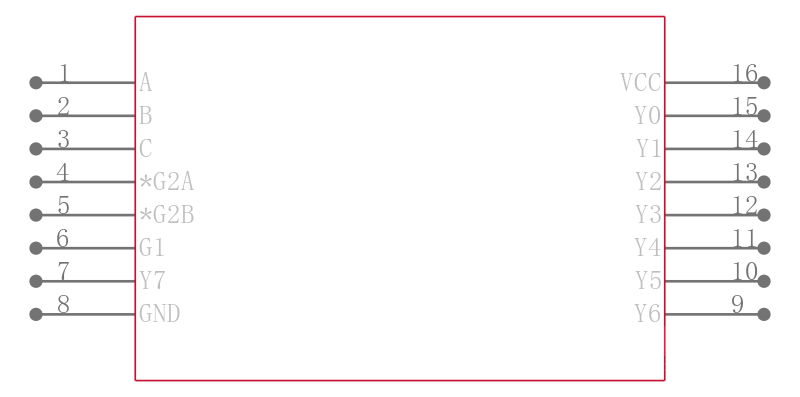

引脚数 16

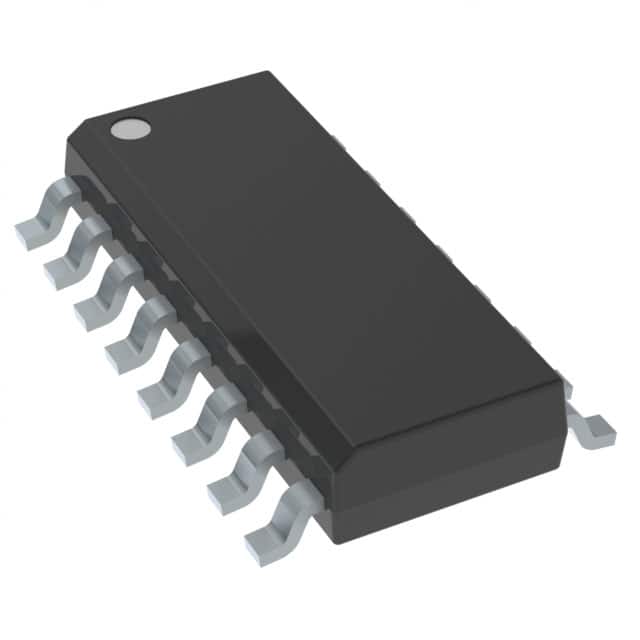

封装 SOP-16
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV138ANSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV138ANS 德州仪器 | 类似代替 | SN74LV138ANSR和SN74LV138ANS的区别 |
74LV138D 恩智浦 | 类似代替 | SN74LV138ANSR和74LV138D的区别 |
SN74LV138ATNSRG4 德州仪器 | 类似代替 | SN74LV138ANSR和SN74LV138ATNSRG4的区别 |
