具有三态输出的双路 4 线路至 1 线路数据选择器/多路复用器 16-SSOP -40 to 85
Texas Instruments" multiplexer will allow you to relax - by forwarding a selected line into a single input, the total number of lines entering or exiting your processor will be reduced. This multiplexer has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a 2 x 4:1 configuration. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V ~ 6.00V
输出接口数 2
触点类型 4PST
电路数 2
通道数 2
位数 4
极性 Non-Inverting
电压波节 6.00 V, 5.00 V, 2.00 V
带宽 28.0 MHz
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

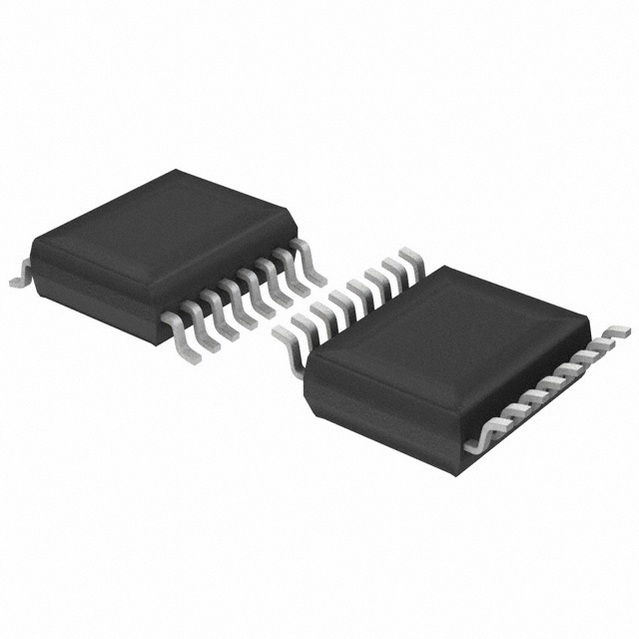

封装 SSOP-16
封装 SSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HC253DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC253DBRE4 德州仪器 | 完全替代 | SN74HC253DBR和SN74HC253DBRE4的区别 |
74HC253DB,118 恩智浦 | 功能相似 | SN74HC253DBR和74HC253DB,118的区别 |
74HC253DB,112 恩智浦 | 功能相似 | SN74HC253DBR和74HC253DB,112的区别 |
