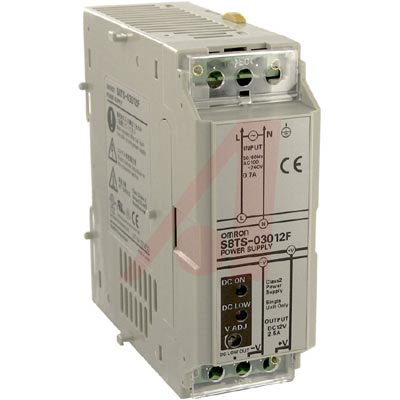

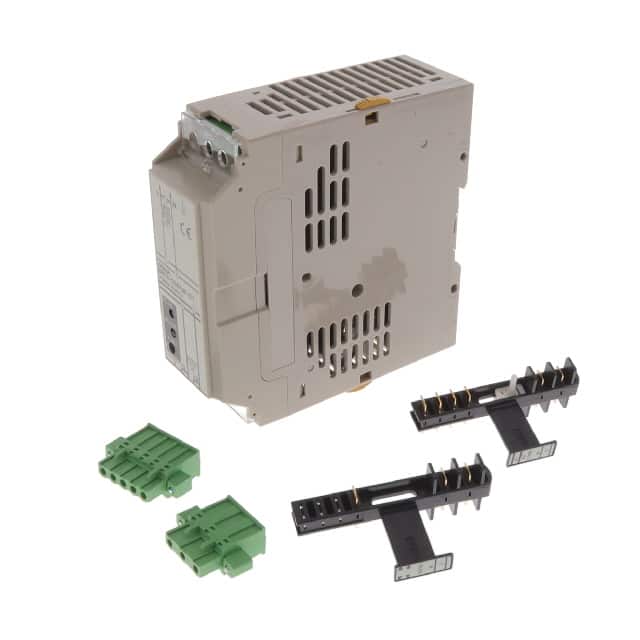

OMRON INDUSTRIAL AUTOMATION S8TS-03012F-E1 开关模式稳压电源
50 A Max. Inrush Current, 50/60 Hz Frequency, Power Supply
* AC/DC bus system
* Up to four blocks can be connected to increase power from 60 to 240 W
* N+1 redundant capability to highly reliable system
* Flexible connection for multi-output power supply 5 V, 12 V,24 V outputs
得捷:
AC/DC CONVERTER 12V 30W
e络盟:
OMRON INDUSTRIAL AUTOMATION S8TS-03012F-E1 开关模式稳压电源
艾睿:
AC/DC Power Supply Single-OUT 12V 2.5A 30W
Allied Electronics:
Power Supply; 12 V; 2.5 A; 50/60 Hz; 50A Max.; 1.69 in.; 4.72 in.; 5 mm
Chip1Stop:
AC/DC Power Supply Single-OUT 12V 2.5A 30W
Verical:
AC/DC Power Supply Single-OUT 12V 2.5A 30W
Newark:
# OMRON INDUSTRIAL AUTOMATION S8TS-03012F-E1 AC/DC DIN Rail Power Supply, Switch Mode, Fixed, 1 Output, 85 VAC, 264 VAC, 30 W, 12 VDC
频率 833 mHz
额定电压DC 12.0 V
额定电流 2.5 A
额定功率 30 W
输出接口数 1
输出电压 12 V
输出电流 2.5 A
输出功率 30 W
隔离电压 3 kV
输入电压AC Max 264 v
输入电压AC Min 85 v
输出电流Max 2.5 A
输出功率Max 30 W
额定功率Max 30 W
工作温度Max 65 ℃
工作温度Min -25 ℃
额定电压 12 V
输入电压 85VAC ~ 264VAC
安装方式 DIN Rail
长度 120 mm
宽度 43 mm
高度 120 mm
直径 5.00 mm
工作温度 -10℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
