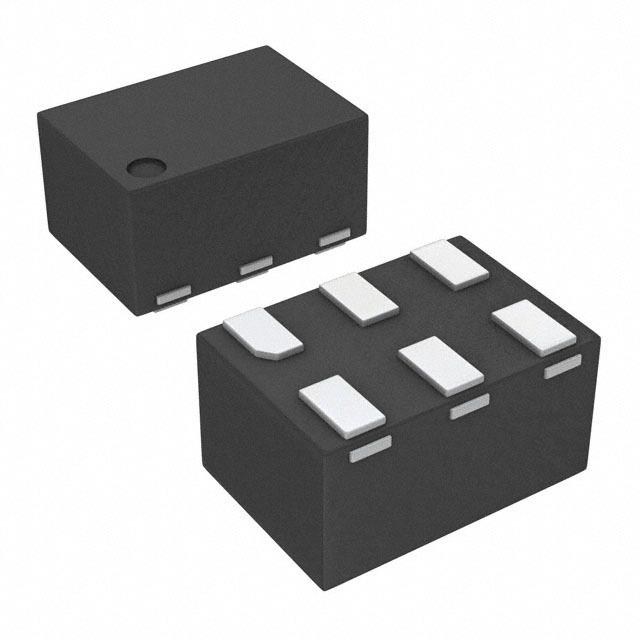

SN74LVC1G18DRYR

编码器、解码器、复用器和解复用器 One of Two Non- inverting Demux

* Available in the Texas Instruments NanoFree Package * Supports 5-V VCC Operation * Inputs Accept Voltages to 5.5 V * Max tpd of 3.4 ns at 3.3 V * Low Power Consumption, 10-μA Max ICC * ±24-mA Output Drive at 3.3 V * Typical VOLP Output Ground Bounce CC = 3.3 V, TA = 25°C * Typical VOHV Output VOH Undershoot >2 V at VCC = 3.3 V, TA = 25°C * Ioff Supports Partial-Power-Down Mode Operation * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 2000-V Human-Body Model A114-A * 200-V Machine Model A115-A * 1000-V Charged-Device Model C101
