翻两番线路至1线数据选择器/多路复用器 QUADRUPLE-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
Thanks to Texas Instruments and their multiplexer, you can ensure that the number of electrical lines within your project is reduced to a minimum. This multiplexer has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a 4 x 2:1 configuration. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 4
触点类型 DPST
电路数 4
位数 4
传送延迟时间 19.5 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V, 2.50 V
耗散功率 200 mW
带宽 70.0 MHz
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount

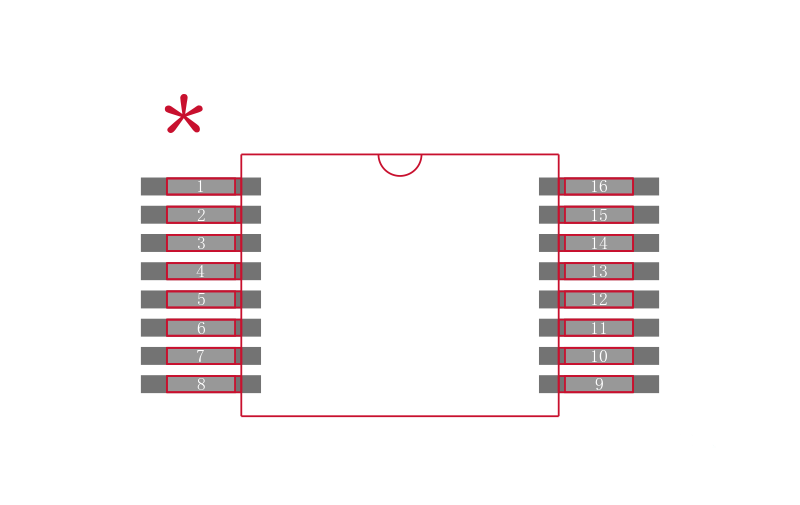

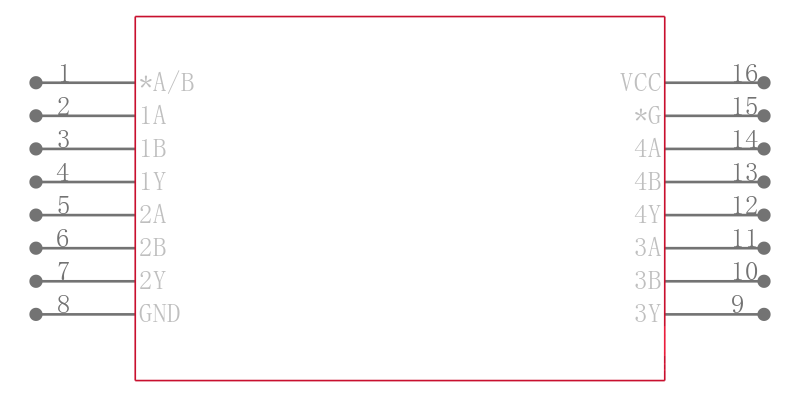

引脚数 16

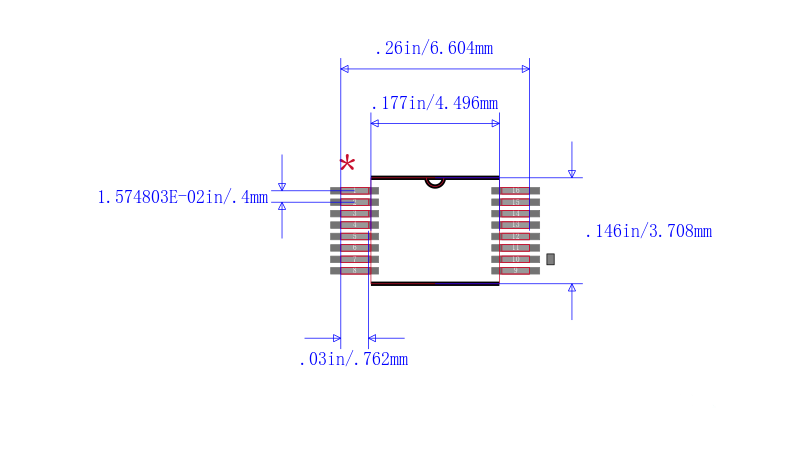

封装 TVSOP-16
长度 3.6 mm
宽度 4.4 mm
高度 1.05 mm
封装 TVSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV157ADGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV157APWR 德州仪器 | 完全替代 | SN74LV157ADGVR和SN74LV157APWR的区别 |
SN74LV157AD 德州仪器 | 完全替代 | SN74LV157ADGVR和SN74LV157AD的区别 |
SN74LV157APW 德州仪器 | 完全替代 | SN74LV157ADGVR和SN74LV157APW的区别 |
