SN74LVC1G29YZPR

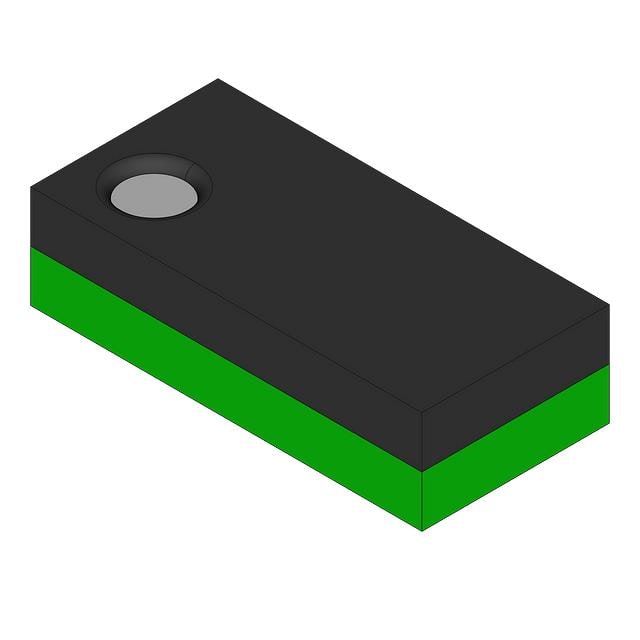

SN74LVC1G29YZPR 解码器、多路复用器、信号开关 8-DSBGA/8-WCSP/8-XFBGA 标记47ND97

逻辑类型Logic Type| 解码器/多路分解器 Decoder/Demultiplexer \---|--- 电路数Number of Circuits| 1 x 2:3 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 32mA，32mA 静态电流IqCurrent - Quiescent Max| 单电源 Single Supply 输出高，低电平电流Current - Output High, Low| 1.65 V ~ 5.5 V 低逻辑电平Logic Level - Low| This decoder is designed for 1.65-V to 5.5-V VCC operation.The SN74LVC1G29 is a 2-of-3 decoder/demultiplexer. When the enable G input signal is low, only one of the outputs is in the low state, depending on the input levels of A0 and A1. When G is high, Y0, Y1, and Y2 are high, regardless of the input states. Available in the Texas Instruments NanoFree™ Packages Supports 5-V VCC Operation Inputs Accept Voltages to 5.5 V Max tpd of 3.4 ns at 3.3 V Low Power Consumption, 10-µA Max ICC ±24-mA Output Drive at 3.3 V Ioff Supports Partial-Power-Down Mode Operation Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II 高逻辑电平Logic Level - High| 该解码器设计用于1.65-V到5.5 V的VCC操作。SN74LVC1G29是一个2-3解码器/多路分解器。当使能（G）输入信号为低时，只有其中一个输出处于低状态，取决于A0和A1的输入电平。当G为高电平时，Y0，Y1和Y2为高，输入状态无关。 NanoFree™软件包 支持5-V VCC操作 接受输入电压到5.5 V 在3.3 V最大TPD为3.4 ns 低功耗，10μA最大ICC ±24 mA输出驱动，在3.3 V时 IOFF支持部分断电模式操作 闭锁性能超过100 mA每JESD 78，II类 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| Description & Applications| 描述与应用|
