具有三态输出的 8 选 1 数据选择器/多路复用器 16-SOIC 0 to 70
Shrink the number of electrical lines with this multiplexer from Texas Instruments by selecting one of several input signals and forwarding the selected signal into a single line! This multiplexer has an operating temperature range of 0 °C to 70 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a 1 x 8:1 configuration. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V ~ 5.50V
输出接口数 1
电路数 1
位数 8
电压波节 5.00 V
带宽 75.0 MHz
输出电流驱动 -108 µA
输入数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16

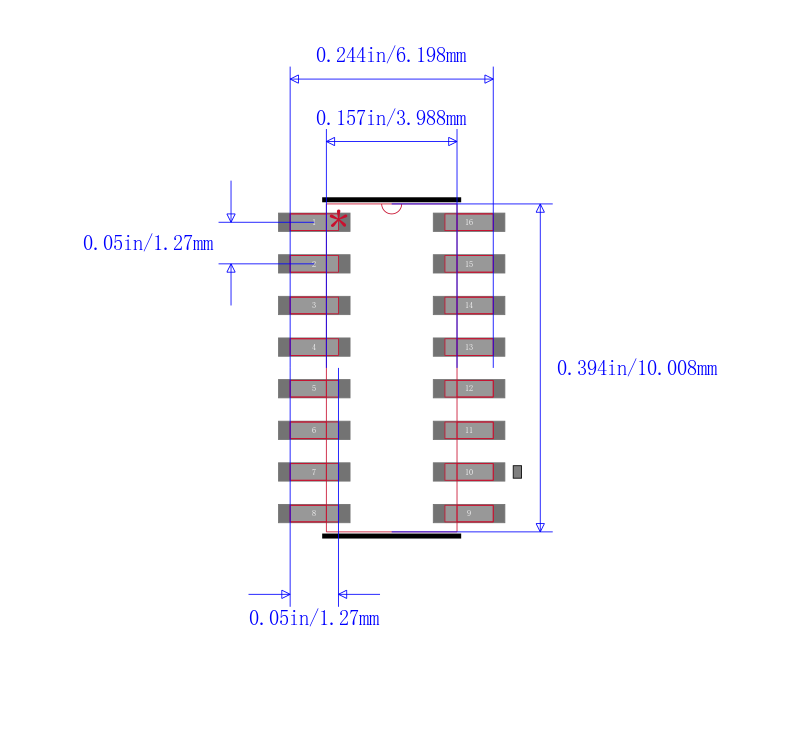

封装 SOIC-16
宽度 3.91 mm
高度 1.5 mm
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALS251DR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALS151D 德州仪器 | 完全替代 | SN74ALS251DR和SN74ALS151D的区别 |
SN74ALS251N 德州仪器 | 完全替代 | SN74ALS251DR和SN74ALS251N的区别 |
SN74ALS251D 德州仪器 | 完全替代 | SN74ALS251DR和SN74ALS251D的区别 |
