3线路至8线路解码器/多路解复用器 3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS
Safety is important to allow for products to safely fail, implement this from Texas Instruments to decode multiplexed or non-binary data. This decoder has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 2.00V ~ 3.60V
输出接口数 8
电路数 1
位数 8
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
带宽 100 MHz
输出电流驱动 -1.00 mA
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 16

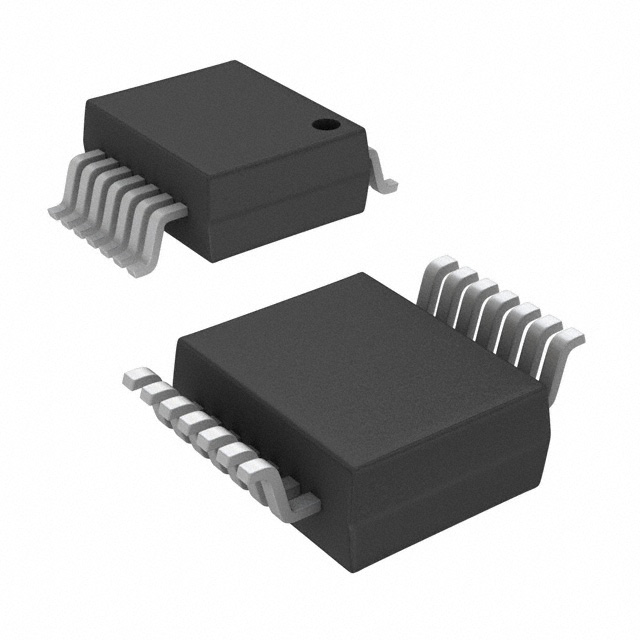

封装 TFSOP-16
封装 TFSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC138ADGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC138AD 德州仪器 | 完全替代 | SN74LVC138ADGVR和SN74LVC138AD的区别 |
SN74LVC138ADR 德州仪器 | 类似代替 | SN74LVC138ADGVR和SN74LVC138ADR的区别 |
SN74LVC138APW 德州仪器 | 类似代替 | SN74LVC138ADGVR和SN74LVC138APW的区别 |
