8号线到1线数据选择器/多路复用器 8-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS
Texas Instruments" multiplexer will allow you to relax - by forwarding a selected line into a single input, the total number of lines entering or exiting your processor will be reduced. This multiplexer has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It is made in a 1 x 8:1 configuration.
电源电压DC 2.00V ~ 6.00V
输出接口数 1
位数 8
电压波节 6.00 V, 5.00 V, 2.00 V
带宽 28.0 MHz
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16

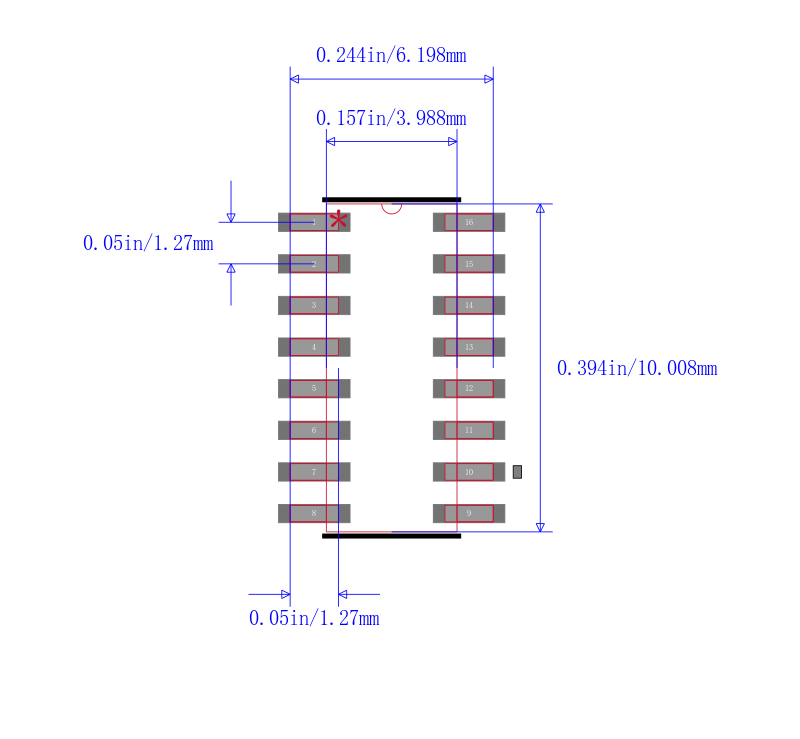

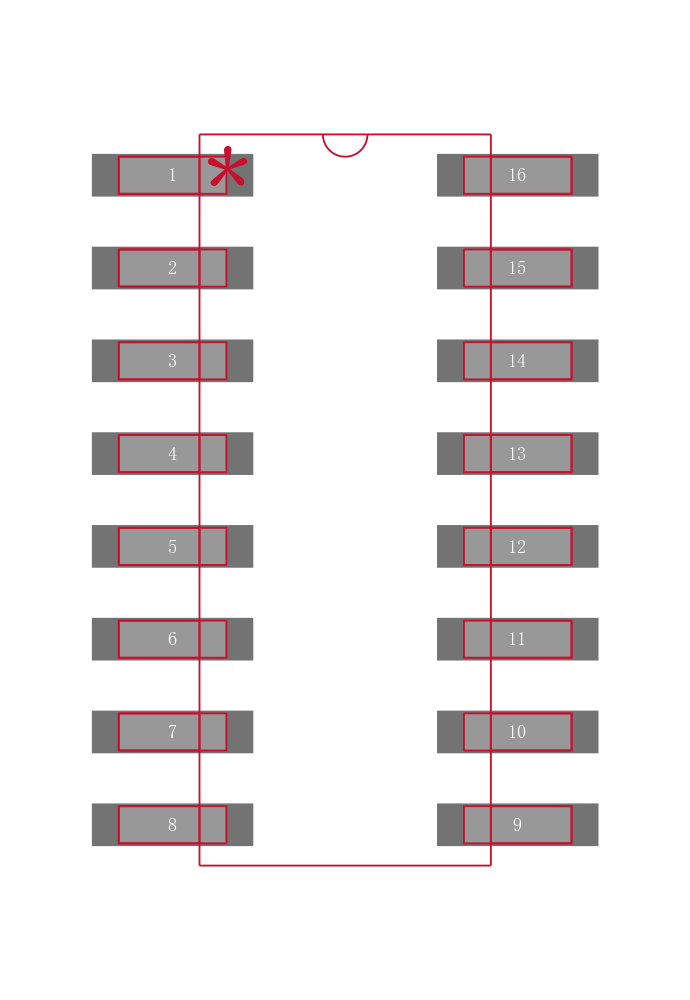

封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HC151DRG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC151N 德州仪器 | 完全替代 | SN74HC151DRG4和SN74HC151N的区别 |
SN74HC151D 德州仪器 | 完全替代 | SN74HC151DRG4和SN74HC151D的区别 |
SN74HC151DR 德州仪器 | 完全替代 | SN74HC151DRG4和SN74HC151DR的区别 |
