3线路至8线路解码器/多路解复用器 3-LINE TO 8-LINE DECODERS/DEMULTIPLEXERS

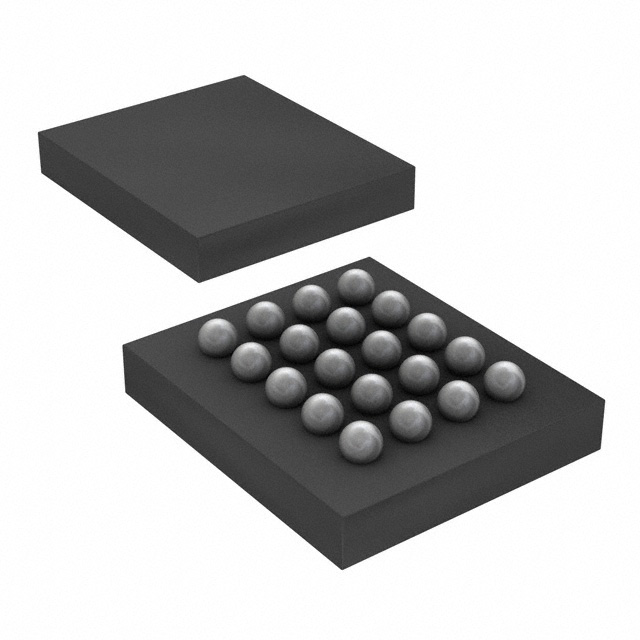

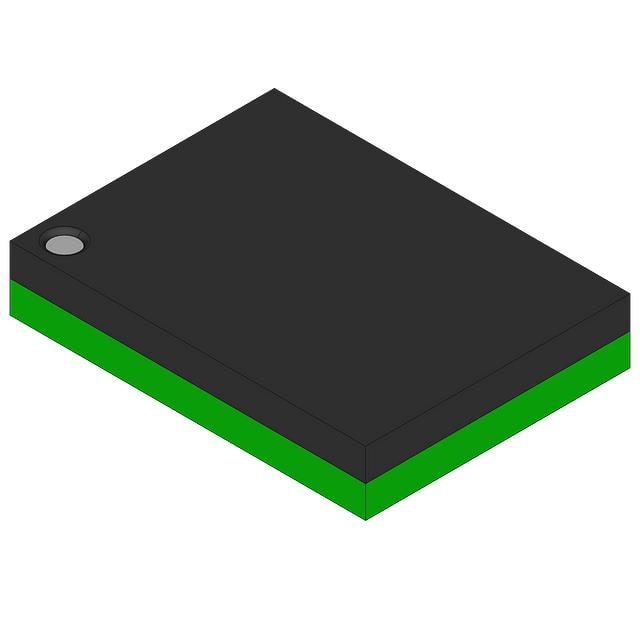

解码器/多路分解器 1 x 3:8 20-BGA MICROSTAR JUNIOR(4x3)
得捷:
IC DECODER/DEMUX 1X3:8 20BGA
贸泽:
编码器、解码器、复用器和解复用器 3-Line to 8-Line Decoder/Demltplxr
艾睿:
Safety is important to allow for products to safely fail, implement this SN74LVC138AZQNR from Texas Instruments to decode multiplexed or non-binary data. This decoder has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
安富利:
Decoder/Demultiplexer Single 3-to-8 20-Pin BGA MICROSTAR JUNIOR T/R
Chip1Stop:
Decoder/Demultiplexer Single 3-to-8 20-Pin BGA MICROSTAR JUNIOR T/R
Verical:
Decoder/Demultiplexer Single 3-to-8 20-Pin BGA MICROSTAR JUNIOR T/R
Newark:
# TEXAS INSTRUMENTS SN74LVC138AZQNR Decoder / Demultiplexer, LVC Family, 8 Output, 1.65 V to 3.6 V, BGA-20
电源电压DC 2.00V ~ 3.60V
输出接口数 8
电路数 3
位数 8
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
带宽 100 MHz
输出电流驱动 -1.00 mA
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 20
封装 BGA-20
长度 4 mm
宽度 3 mm
高度 0.75 mm
封装 BGA-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC138AZQNR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC139AZQNR 德州仪器 | 类似代替 | SN74LVC138AZQNR和SN74LVC139AZQNR的区别 |
SN74LVC138AGQNR 德州仪器 | 类似代替 | SN74LVC138AZQNR和SN74LVC138AGQNR的区别 |
SN74LVC139AGQNR 德州仪器 | 功能相似 | SN74LVC138AZQNR和SN74LVC139AGQNR的区别 |
