BCD到十进制解码器/驱动器 BCD-TO-DECIMAL DECODERS/DRIVERS
Choose between multiple outputs given a certain selection inputs with this from Texas Instruments. With an open collector output, this is power management at its best. This decoder has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 4.75V ~ 5.25V
输出接口数 10
电路数 4
位数 10
电压波节 5.00 V
带宽 35.0 MHz
输出电流驱动 -50.0 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole

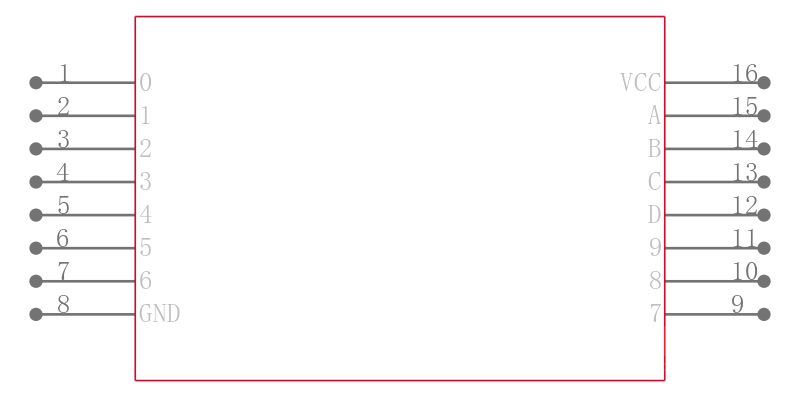

引脚数 16
封装 PDIP-16
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS145NE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS145N3 德州仪器 | 完全替代 | SN74LS145NE4和SN74LS145N3的区别 |
SN74LS47N 德州仪器 | 类似代替 | SN74LS145NE4和SN74LS47N的区别 |
SN74LS145N 德州仪器 | 类似代替 | SN74LS145NE4和SN74LS145N的区别 |
