SN74CBTS3384DBRE4

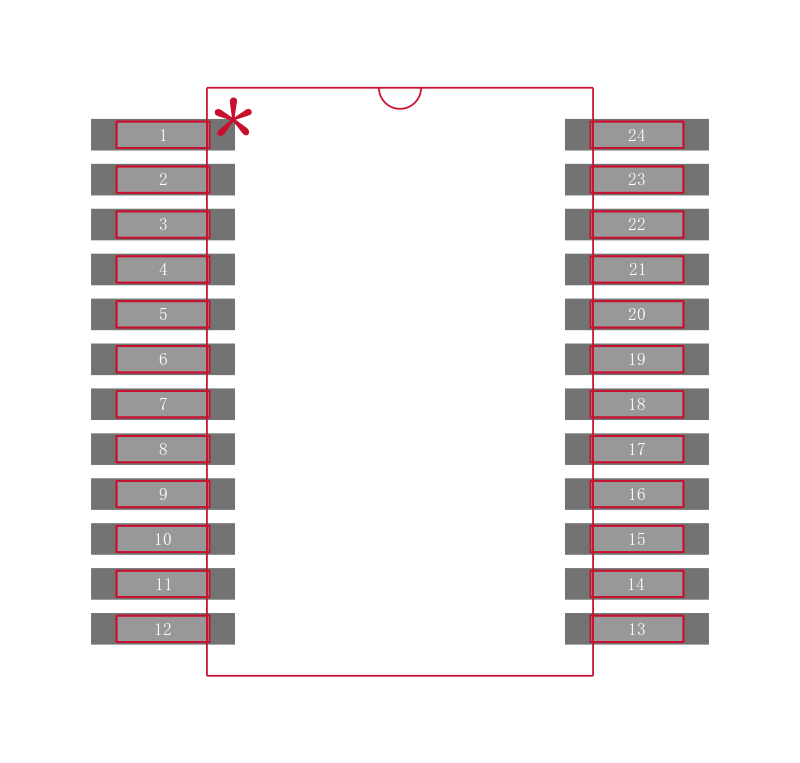

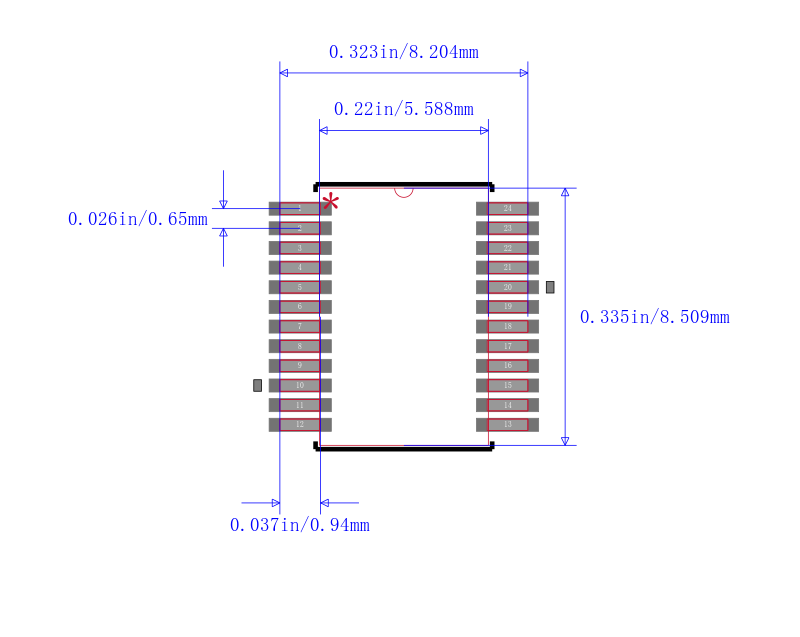

10Bit FET Bus Switch With Schottky Diode Clamping 24-SSOP -40℃ to 85℃

description/ordering information

The SN74CBTS3384 provides ten bits of high-speed TTL-compatible bus switching with Schottky diodes on the I/Os to clamp undershoot. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

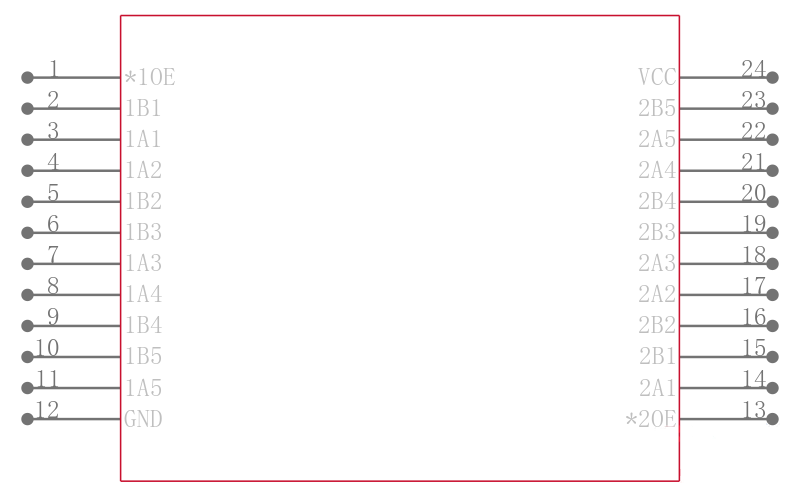

The device is organized as two 5-bit bus switches with separate output-enable OE inputs. When OE is low, the switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.

 5-Ω Switch Connection Between Two Ports

 TTL-Compatible Input Levels
