ROHM Chip LED SML-31 Series LEDsThe SML-31 Chip LEDs, from ROHM Semiconductor, are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types. 1.6 x 0.8 mm ### 可见光 LED,ROHM Semiconductor

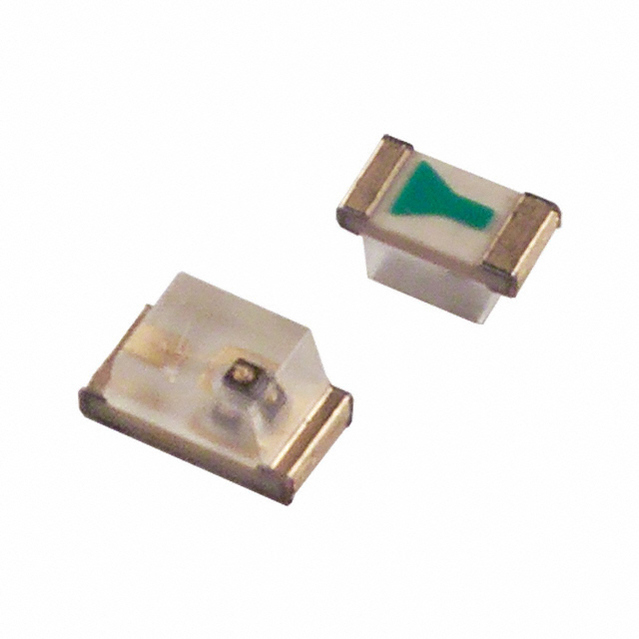

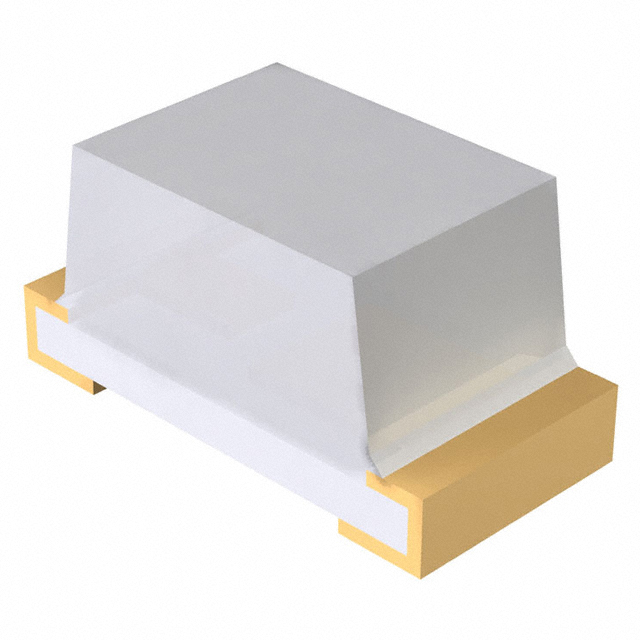

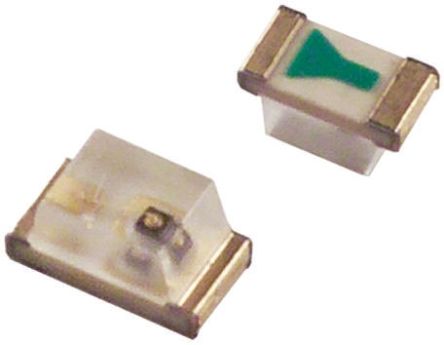

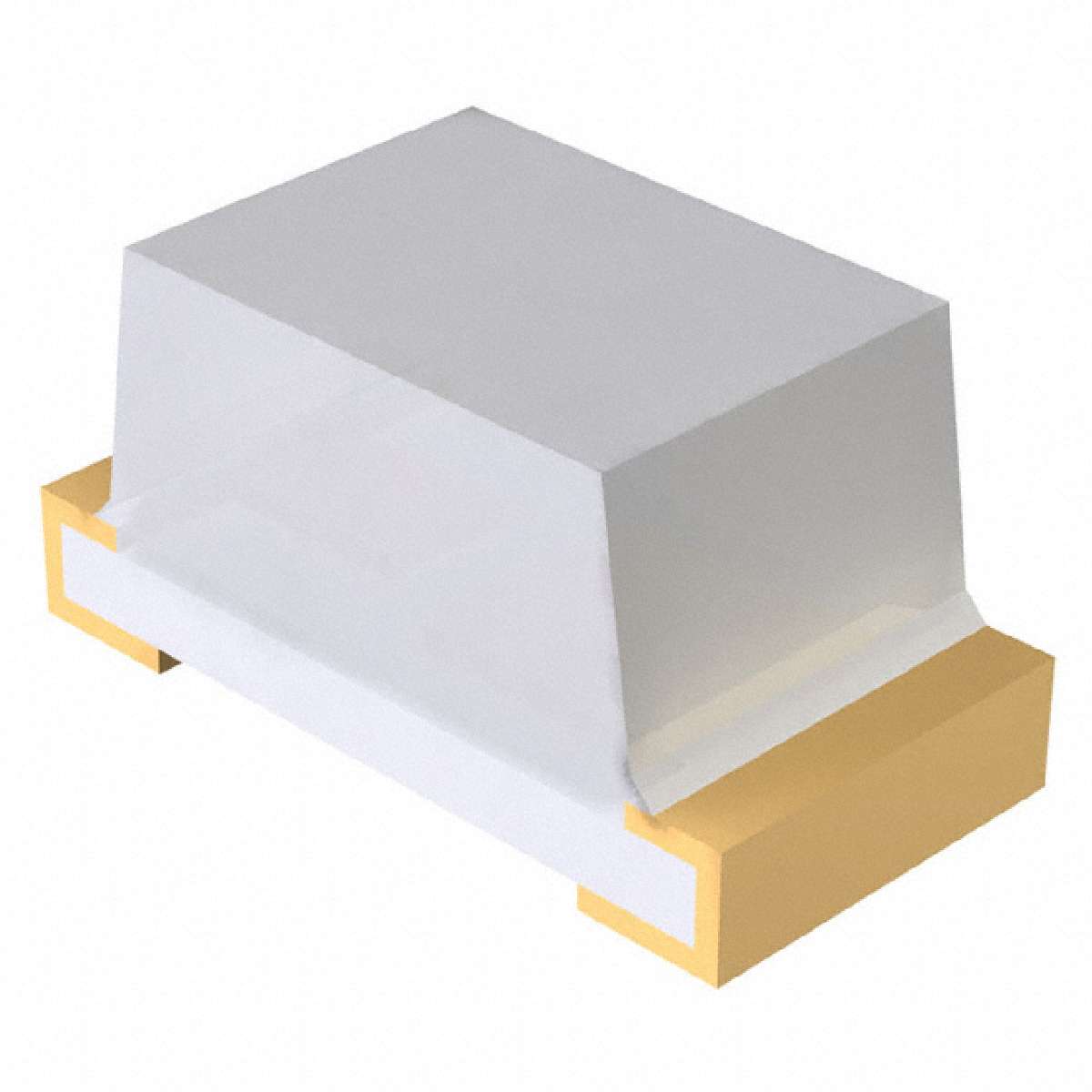

ROHM Chip SML-31 Series LEDs
The SML-31 Chip LEDs, from , are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types.
1.6 x 0.8 mm
### 可见光 LED,ROHM Semiconductor
得捷:
LED RED CLEAR 0603 SMD
立创商城:
橙红 620nm
欧时:
### ROHM Chip LED SML-31 Series LEDsThe SML-31 Chip LEDs, from ROHM Semiconductor, are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types. 1.6 x 0.8 mm ### 可见光 LED,ROHM Semiconductor
艾睿:
LED Uni-Color Red 2-Pin Chip 06031608Metric T/R
安富利:
LED Uni-Color Red 2-Pin Chip LED T/R
富昌:
SML-311 系列 红色 0603 140° 透明 2.5 mcd 1.8 V 表面贴装 贴片 LED
Chip1Stop:
LED Uni-Color Red 2-Pin Case 1.6 x 0.8 mm T/R
TME:
LED; SMD; 0603; red; 0.9-2.5mcd; 1.6x0.8x0.8mm; 1.8V; 2mA; λd:620nm
Verical:
LED Uni-Color Red 2-Pin Chip 06031608Metric T/R
儒卓力:
**CHIP LED RED LC **
Win Source:
Red 620nm LED Indication - Discrete 1.8V 0603 1608 Metric
针脚数 2
正向电压 1.8 V
波长 620 nm
发光强度 2.5 mcd
视角 140°
透镜样式 Non-Diffused
峰值波长 630 nm
耗散功率 44 W
测试电流 2 mA
正向电流 20 mA
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 44 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.60 mm
宽度 800 µm
高度 0.90 mm
封装公制 1608
封装 0603
颜色 Red
工作温度 -30℃ ~ 85℃
外观颜色 Transparent
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99



| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SML-311UTT86 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
LTST-C191KRKT 光宝 | 功能相似 | SML-311UTT86和LTST-C191KRKT的区别 |
LTST-C190KRKT 光宝 | 功能相似 | SML-311UTT86和LTST-C190KRKT的区别 |
LNJ808R88RA 松下 | 功能相似 | SML-311UTT86和LNJ808R88RA的区别 |
