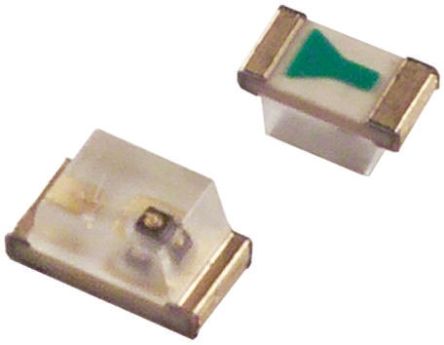

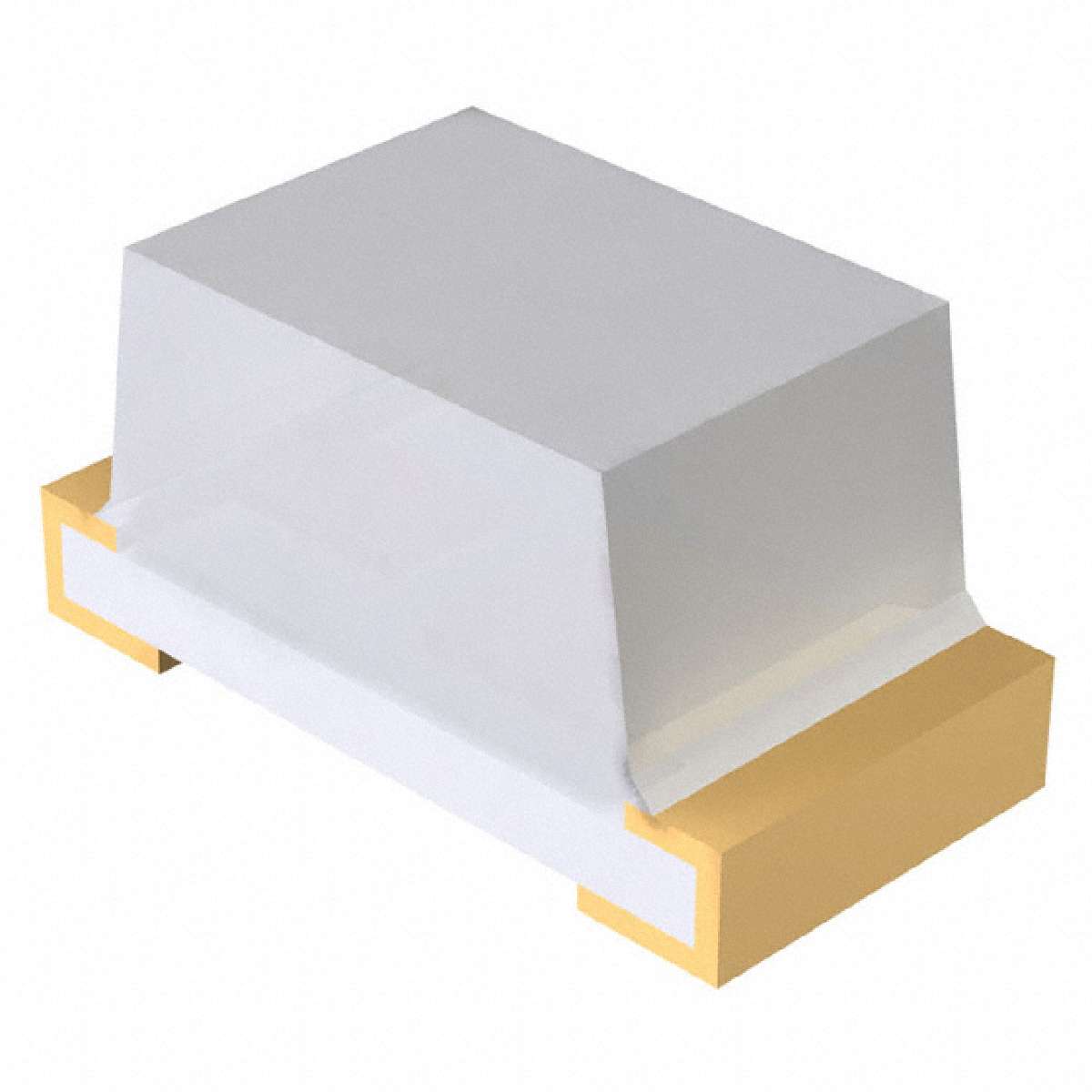

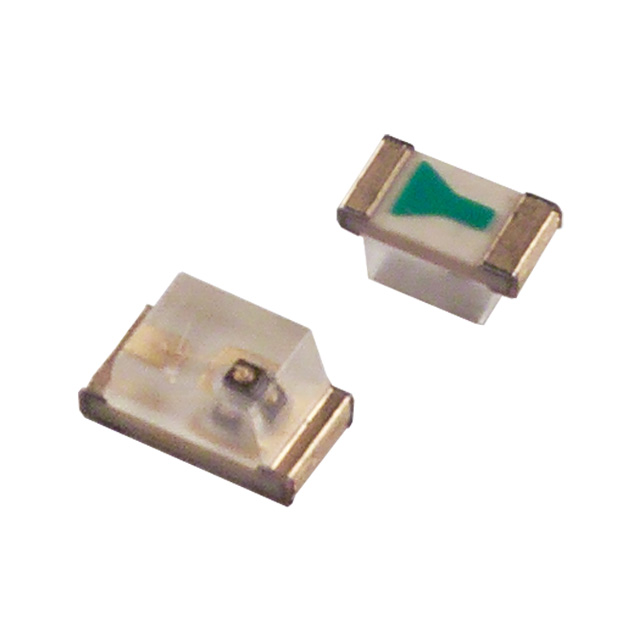

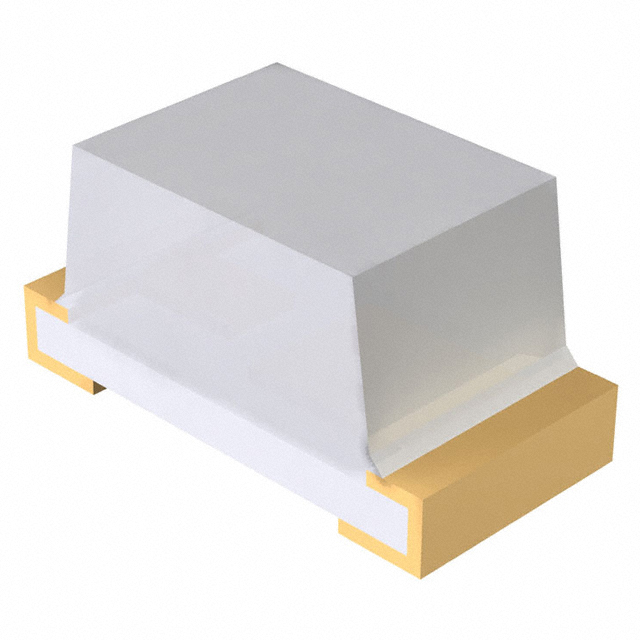

ROHM Chip LED SML-31 Series LEDsThe SML-31 Chip LEDs, from ROHM Semiconductor, are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types. 1.6 x 0.8 mm ### 可见光 LED,ROHM Semiconductor
灯珠
得捷:
LED GREEN CLEAR 0603 SMD
欧时:
### ROHM Chip LED SML-31 Series LEDsThe SML-31 Chip LEDs, from ROHM Semiconductor, are in the 1608 package. The SML-31 LEDs are available in a range of colour variations and diverse luminous intensity types. 1.6 x 0.8 mm ### 可见光 LED,ROHM Semiconductor
立创商城:
普绿/黄绿 560nm
贸泽:
标准LED-SMD PURE GREEN SMD TRANSPARENT LENS
艾睿:
LED Uni-Color Green 2-Pin Chip 06031608Metric T/R
安富利:
LED Uni-Color Green 2-Pin Chip LED T/R
富昌:
SML-310 Series Green 0603 140° Clear 4 mcd 2.2 V Surface Mount Chip LED
Chip1Stop:
LED Uni-Color Green 2-Pin Chip 06031608Metric T/R
Win Source:
Green LED Indication - Discrete 2.2V 0603 1608 Metric
针脚数 2
正向电压 2.2 V
波长 555 nm
发光强度 4.00 mcd
视角 140°
透镜样式 Non-Diffused
峰值波长 555 nm
耗散功率 55 mW
测试电流 20 mA
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 55 mW
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.90 mm
封装公制 1608
封装 0603
颜色 Green
工作温度 -30℃ ~ 85℃
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free



| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SML-310PTT86 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
SML-LX1206GC-TR 鲁美科思 | 功能相似 | SML-310PTT86和SML-LX1206GC-TR的区别 |
LTST-C190GKT 光宝 | 功能相似 | SML-310PTT86和LTST-C190GKT的区别 |
SML-LX1206GW-TR 鲁美科思 | 功能相似 | SML-310PTT86和SML-LX1206GW-TR的区别 |
